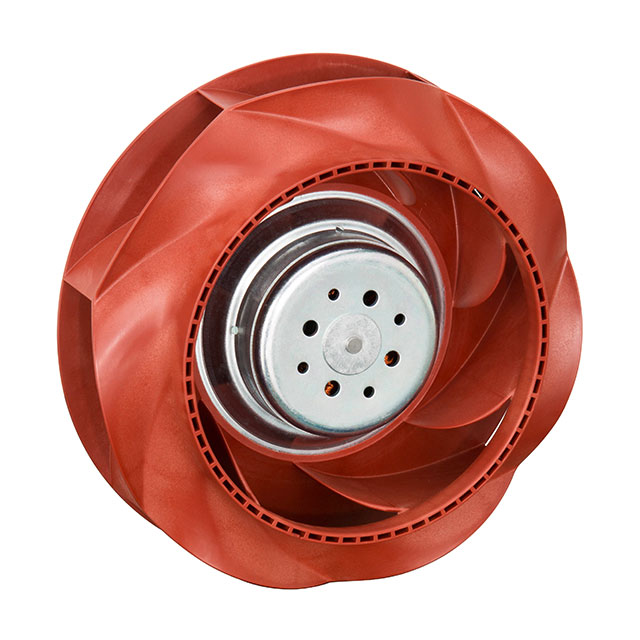

RER190 Series

Catalog

FAN IMP MTRZD 190X69MM 24VDC

Part	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Width [y]	Size / Dimension [diameter]	Size / Dimension	Fan Type	Ingress Protection	Weight	Weight	RPM	Voltage - Rated	Termination	Bearing Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Lifetime @ Temp.	Operating Temperature	Features

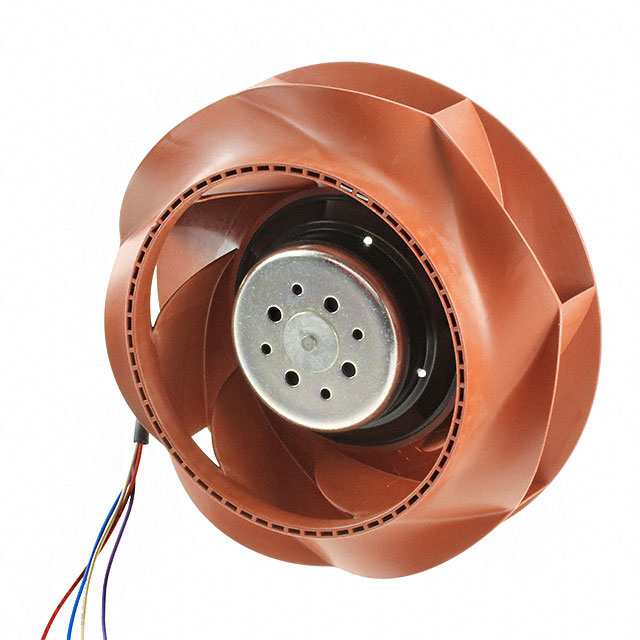

ebm-papst Inc. RER190-39/14/2TDLOU	10.55 mł/min	376.7 CFM	30 V	16 VDC	57.1 W	69 mm	190 mm	Round	Motorized Impellers	IP68 - Dust Tight Waterproof	861.8 g	1.9 lbs	2900 RPM	24 VDC	2 Wire Leads	Ball	UL	60 °C	60 °C	-4 °F	-20 ░C
ebm-papst Inc. RER190-39/18/2TDO	16 m³/min	571.3 CFM	72 VDC	36 VDC	148 W	69 mm	190 mm	Round	Motorized Impellers		900 g	1.9 lbs	4400 RPM	48 VDC	4 Wire Leads	Ball			65 °C		-20 ░C	Fiberglass Reinforced Plastic	40000 Hrs	(-20 ~ 65°C)	PWM Control Speed Sensor (Tach)
ebm-papst Inc. RER190-39/14/2TDMLO	10.7 m³/min	382 CFM	30 V	16 VDC		69 mm	190 mm	Round	Motorized Impellers		900 g	1.9 lbs	3000 RPM	24 VDC	4 Wire Leads	Ball		60 °C	60 °C	-4 °F	-20 ░C	Fiberglass Reinforced Plastic	55000 Hrs		PWM Control Speed Sensor (Tach)
ebm-papst Inc. RER190-39/14/2TDMO	14.17 m³/min	506 CFM	36 VDC	16 VDC	110 W	69 mm	190 mm	Round	Motorized Impellers		900 g	1.9 lbs	3900 RPM	24 VDC	4 Wire Leads	Ball			65 °C		-20 ░C	Fiberglass Reinforced Plastic	52500 Hrs	(-20 ~ 65°C)	PWM Control Speed Sensor (Tach)
