OD6020 Series
Manufacturer: ORION FANS
Beta
⌘K

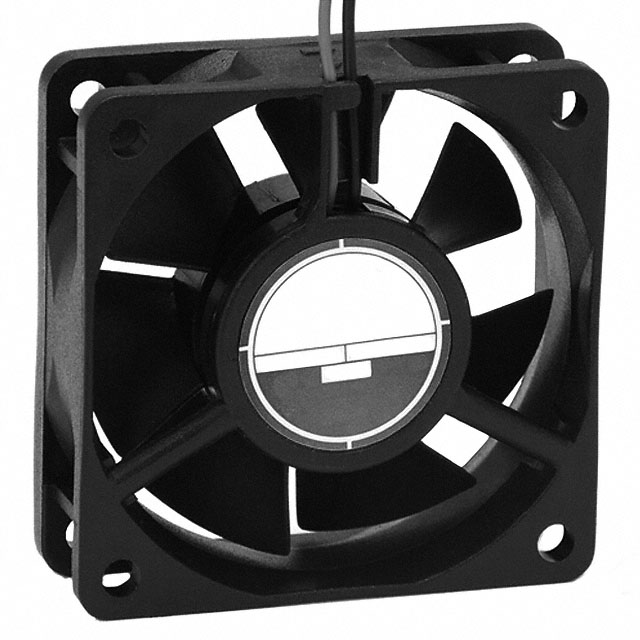

FAN AXIAL 60X20MM 12VDC WIRE
| Part | Material - Blade | Material - Frame | Width [y] | Voltage - Rated | Approval Agency | Fan Type | Termination | Bearing Type | Size / Dimension [z] | Size / Dimension [x] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 3 Wire Leads | Sleeve | 60 mm | 60 mm | Speed Sensor (Tach) | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 2 Wire Leads | Sealed Sleeve | 60 mm | 60 mm | |||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 2 Wire Leads | Sealed Sleeve | 60 mm | 60 mm | |||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 5 V | cURus TUV | Tubeaxial | 3 Wire Leads | Sealed Sleeve | 60 mm | 60 mm | Speed Sensor (Tach) | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 5 V | cURus TUV | Tubeaxial | 3 Wire Leads | Ball | 60 mm | 60 mm | Speed Sensor (Tach) | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 3 Wire Leads | Sealed Sleeve | 60 mm | 60 mm | Locked Rotor Sensor | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 2 Wire Leads | Ball | 60 mm | 60 mm | -4 °F | 167 °F | 0.484 mł/min | 17.3 CFM | 0.15 in H2O | 37.4 Pa | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 3 Wire Leads | Ball | 60 mm | 60 mm | Locked Rotor Sensor | -4 °F | 167 °F | ||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 12 VDC | cURus TUV | Tubeaxial | 3 Wire Leads | Sleeve | 60 mm | 60 mm | Locked Rotor Sensor | -10 °C | 50 °C | ||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 20 mm | 24 VDC | cURus TUV | Tubeaxial | 2 Wire Leads | Sleeve | 60 mm | 60 mm | -10 °C | 50 °C |
