TR9CI1670 Series

Catalog

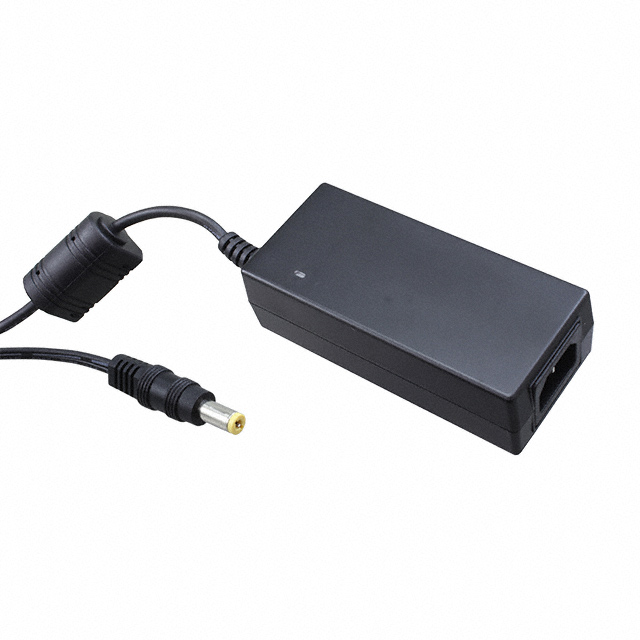

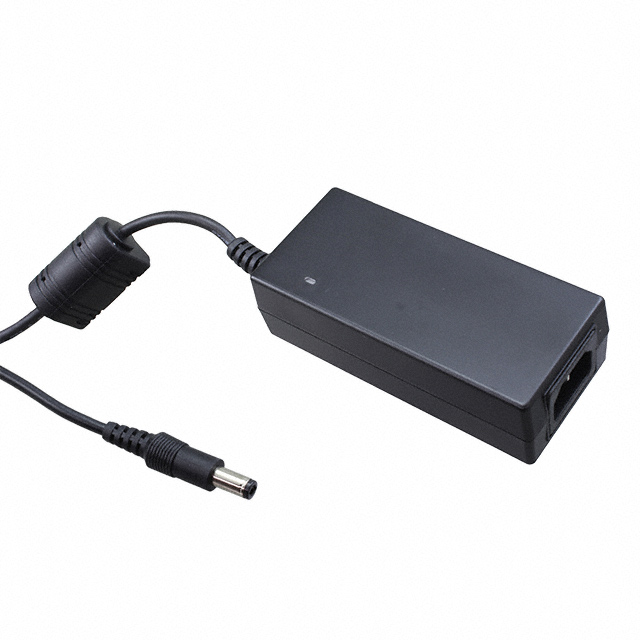

AC/DC DESKTOP ADAPTER 24V 40W

Part	Standard Number	Voltage - Output	Cord Length	Cord Length	Power (Watts)	Input Connector	Output Connector [x]	Output Connector [diameter]	Output Connector	Form	No Load Power Consumption	Efficiency	Approval Agency	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Region Utilized	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Polarization	Operating Temperature [Max]	Operating Temperature [Min]
GlobTek, Inc. TR9CI1670CCP-N(R6B)	60950-1	24 V	1.23 m	48.4 in	40 W	IEC 320-C14	11 mm	2.1 mm 5.5 mm	Barrel Plug	Desktop (Class I)	75 mW	Level VI	CB CE cULus EAC FCC LPS PSE UkrSEPRO VCCI	Cord (Sold Separately)	264 VAC	90 VAC	1.66 A	International	ITE (Commercial)	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Positive Center	40 °C	0 °C
GlobTek, Inc. TR9CI1670LCP-N(R6B)	60950-1	24 V	1.23 m	48.4 in	40 W	IEC 320-C14	11 mm	2.5 mm 5.5 mm	Barrel Plug	Desktop (Class I)	75 mW	Level VI	CB CE cULus EAC FCC LPS PSE UkrSEPRO VCCI	Cord (Sold Separately)	264 VAC	90 VAC	1.67 A	International	ITE (Commercial)	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Positive Center	40 °C	0 °C
