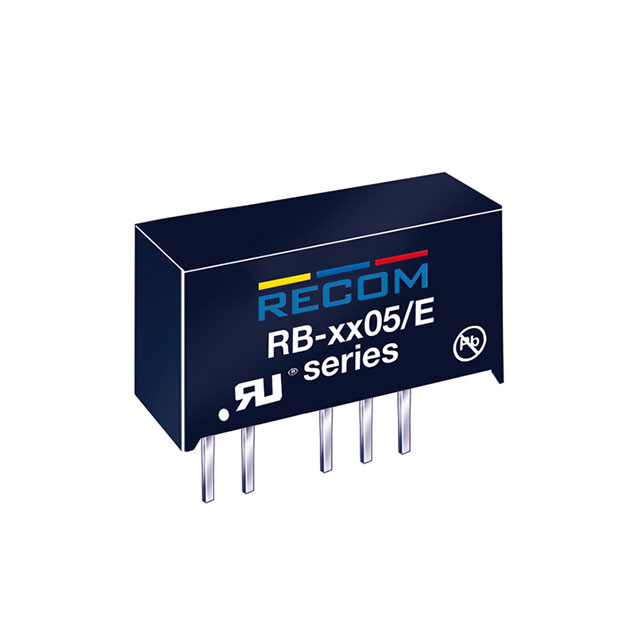

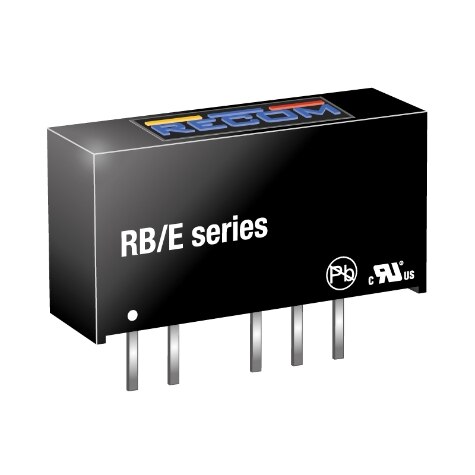

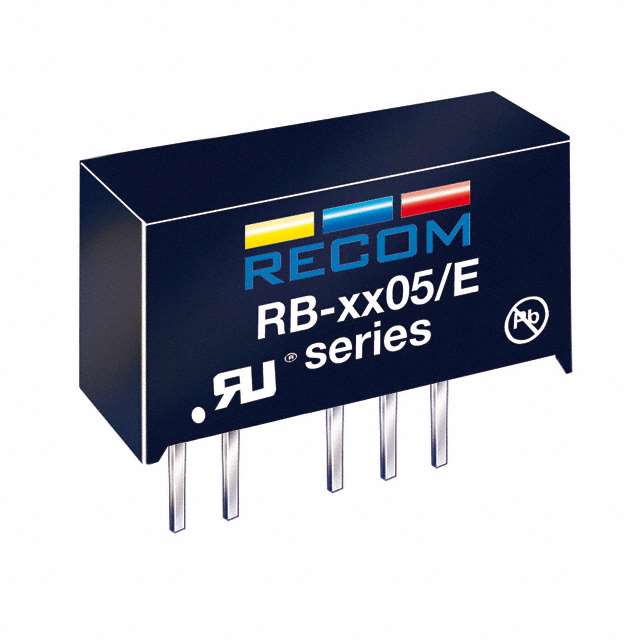

RB/E Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 24VIN 05VOUT CONV DC/DC
| Part | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Applications | Current - Output (Max) [Max] | Features | Type | Package / Case | Mounting Type | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 21.6 V | -40 C | 100 °C | 1 | 26.4 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 1000 V | |
 Recom Power | 10.8 V | -40 C | 100 °C | 1 | 13.2 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 2000 V | 84 % |
Recom Power | 4.5 V | -40 C | 100 °C | 1 | 5.5 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 1000 V | 84 % |
 Recom Power | 10.8 V | -40 C | 100 °C | 1 | 13.2 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 1000 V | 84 % |
 Recom Power | 4.5 V | -40 C | 100 °C | 1 | 5.5 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 1000 V | 84 % |
Recom Power | 10.8 V | -40 C | 100 °C | 1 | 13.2 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 1000 V | 84 % |
Recom Power | 21.6 V | -40 C | 100 °C | 1 | 26.4 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 2000 V | |
Recom Power | 10.8 V | -40 C | 100 °C | 1 | 13.2 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 2000 V | 84 % |
Recom Power | 21.6 V | -40 C | 100 °C | 1 | 26.4 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 1000 V | |
Recom Power | 4.5 V | -40 C | 100 °C | 1 | 5.5 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 5 V | ITE (Commercial) | 200 mA | SCP | Isolated Module | 6 Leads 7-SIP Module | Through Hole | 2000 V | 84 % |
