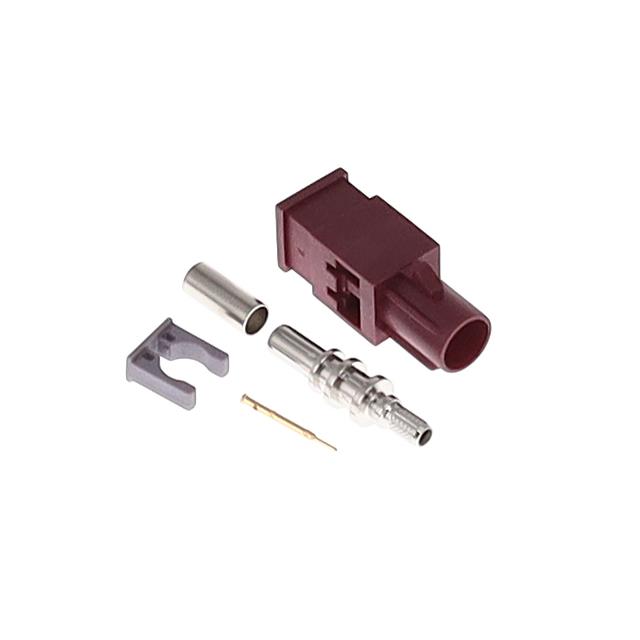

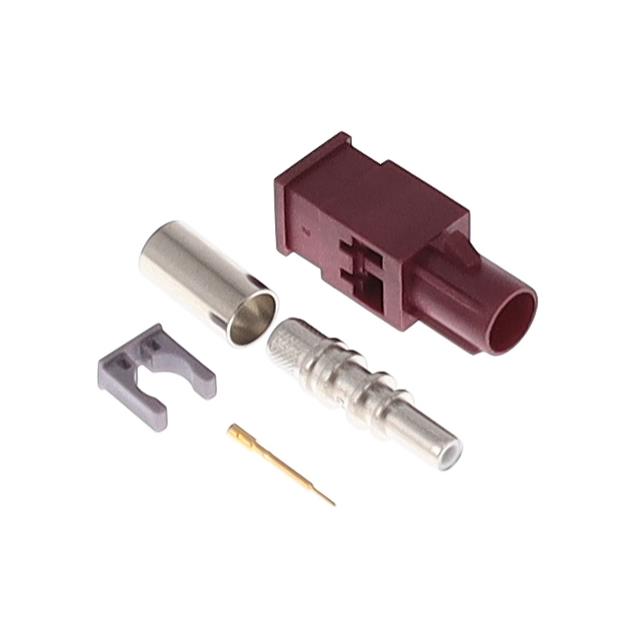

FK0MD Series
Manufacturer: Taoglas Limited
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS FAKRA CODE D
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Features | Frequency - Max [Max] | Mounting Type | Fastening Type | Number of Ports | Housing Color | Contact Termination | Impedance | Connector Style | Shield Termination | Cable Group | Cable Group | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taoglas Limited | -40 C | 105 ░C | 25 | Code D | 6000 MHz | Free Hanging (In-Line) | Locking Ramp | 1 | Bordeaux Violet | Crimp | 50 Ohms | Fakra SMB | Crimp | RG-174 | 316 | Plug Male Pin |
 Taoglas Limited | -40 C | 105 ░C | 25 | Code D | 6000 MHz | Free Hanging (In-Line) | Locking Ramp | 1 | Bordeaux Violet | Crimp | 50 Ohms | Fakra SMB | Crimp | RG-174 | 316 | Plug Male Pin |
 Taoglas Limited |
