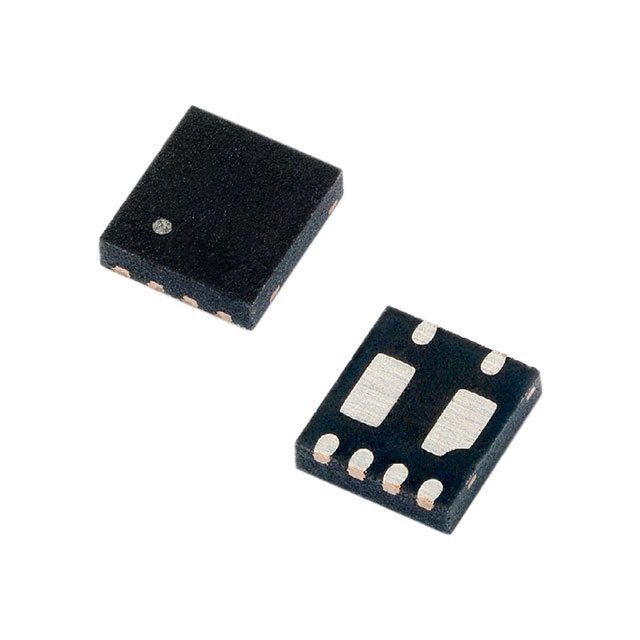

SP1255PUTG Series

3Ch 12kV 0.5pF TVS Diode Array uDFN-6

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

3Ch 12kV 0.5pF TVS Diode Array uDFN-6

Part	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Grade	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Package / Case	Voltage - Reverse Standoff (Typ)	Applications	Power Line Protection	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Qualification
Littelfuse/Commercial Vehicle Products SP1255PUTG	3	8.5 V	Automotive	0.5 pF	4.5 V	-40 °C	125 ¯C	Surface Mount	Steering	6-UFDFN Exposed Pad	4 V	USB OTG		2	6-µDFN	1.8	AEC-Q101

Catalog

3Ch 12kV 0.5pF TVS Diode Array uDFN-6

Key Features

• RoHS compliant and lead-free

• AEC-101 qualified

• For USB Voltage Bus Pin (VBUS)

• IEC 61000-4-2 ESD protection: ±30kV by contact and ±30 kV through air

• EFT, IEC 61000-4-4, 80 A (tP=5/50ns)

• Lightning, IEC 61000-4-5, 100 A (tP=8/20μs)

• Protection for VBUS operating up to 12V

• Benchmark setting protection

• High current handling capability for fast charging applications

• For USB Data Pin (D+, D-, ID)

Description

The SP1255PUTG integrates three channels of ultra-low capacitance steering diodes and a low voltage TVS diode to provide maximum protection of the USB data and ID pins against ESD per the IEC 61000-4-2 standard. An additional 12V TVS diode is included to provide lightning surge protection for the USB VBUS pin up to 100A (tP=8/20μs) per the IEC 61000-4-5 standard. The SP1255P provides superior protection for current intensive applications such as fast charging peripharals. The SP1255P comes in a space saving 2.0x1.8mm μDFN package with a typical height of 0.55mm making it an ideal solution for smart phones, tablets, and other portable electronics.
