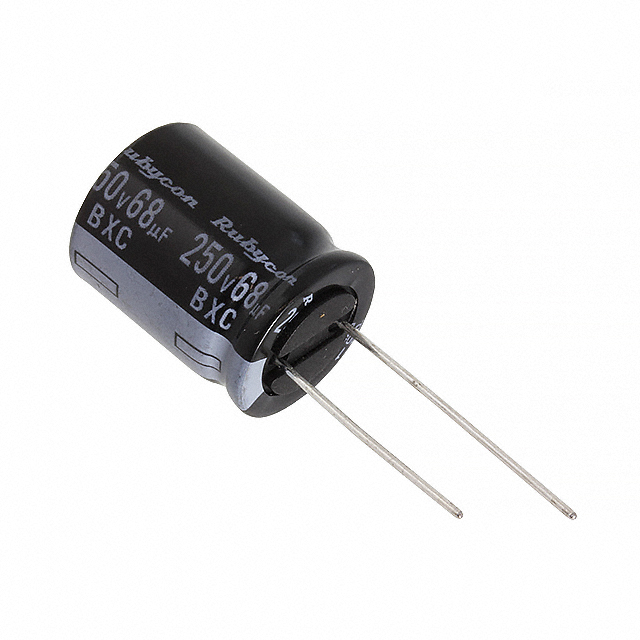

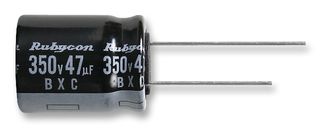

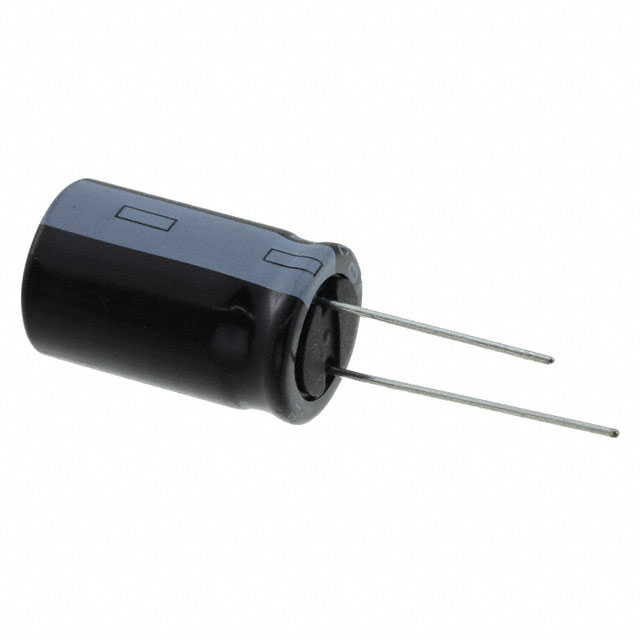

BXC Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LONG LIFE ELECTROLYTIC CAPACITORS

Part	Polarization	Capacitance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Lead Spacing	Lead Spacing	Package / Case	Lifetime @ Temp.	Mounting Type	Ripple Current @ High Frequency	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Rubycon 250BXC120MEFC18X20	Polar	120 µF	0.866 in	22 mm	0.295 in	7.5 mm	Can Radial	12000 Hrs	Through Hole	1.5 A	250 V	105 ░C	-25 °C	675 mA	General Purpose	0.709 in	18 mm	20 %
Rubycon 500BXC33MEFC18X25	Polar	33 ÁF			0.295 in	7.5 mm	Can Radial	12000 Hrs	Through Hole	700 mA	500 V	105 ░C	-25 °C	280 mA	General Purpose	0.709 in	18 mm	20 %	1.063 in	27 mm
Rubycon 200BXC33MEFC10X20	Polar	33 ÁF	0.866 in	22 mm	0.197 "	5 mm	Can Radial	10000 Hrs	Through Hole	650 mA	200 VDC	105 ░C	-25 °C	260 mA	General Purpose	0.394 in	10 mm	20 %
Rubycon 350BXC6R8MEFC10X16	Polar	6.8 µF			0.197 "	5 mm	Can Radial	10000 Hrs	Through Hole	280 mA	350 V	105 ░C	-25 °C	84 mA	General Purpose	0.394 in	10 mm	20 %			0.709 in	18 mm
Rubycon 400BXC22MEFC16X20	Polar	22 µF	0.866 in	22 mm	0.295 in	7.5 mm	Can Radial	12000 Hrs	Through Hole		400 V	105 ░C	-25 °C	304 mA	General Purpose	0.63 in	16 mm	20 %
Rubycon 200BXC100MEFC16X20	Polar	100 µF	0.866 in	22 mm	0.295 in	7.5 mm	Can Radial	12000 Hrs	Through Hole	1.42 A	200 VDC	105 ░C	-25 °C	639 mA	General Purpose	0.63 in	16 mm	20 %
