503660 Series
Manufacturer: Molex
Beta
⌘K

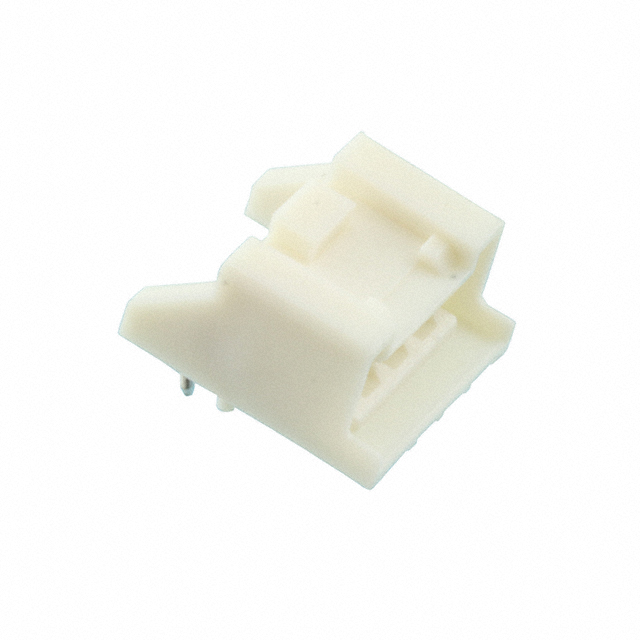

CONN HEADER R/A 4POS 2MM
| Part | Insulation Color | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Insulation Height [custom] | Insulation Height [custom] | Insulation Material | Connector Type | Contact Shape | Fastening Type | Number of Rows | Number of Positions Loaded | Number of Positions | Contact Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Type | Shrouding | Termination | Style | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Natural | 0.118 in | 3 mm | UL94 V-0 | 0.236 " | 6 mm | Polybutylene Terephthalate (PBT) Glass Filled | Header | Circular | Latch Holder | 1 | All | 4 | Brass | 0.079 " | 2 mm | Tin | Male Pin | Shrouded - 4 Wall | Kinked Pin Solder | Board to Cable/Wire | Right Angle Through Hole | |
Molex | Natural | 0.118 in | 3 mm | UL94 V-0 | 0.236 " | 6 mm | Polybutylene Terephthalate (PBT) Glass Filled | Header | Square | Latch Holder | 1 | All | 6 | Brass | 0.079 " | 2 mm | Tin | Male Pin | Shrouded - 4 Wall | Kinked Pin Solder | Board to Cable/Wire | Right Angle Through Hole | Board Guide |
Molex | Natural | 0.118 in | 3 mm | UL94 V-0 | 0.236 " | 6 mm | Polybutylene Terephthalate (PBT) Glass Filled | Header | Circular | Latch Holder | 1 | All | 8 | Brass | 0.079 " | 2 mm | Tin | Male Pin | Shrouded - 4 Wall | Kinked Pin Solder | Board to Cable/Wire | Right Angle Through Hole | |
Molex | Natural | 0.118 in | 3 mm | UL94 V-0 | 0.236 " | 6 mm | Polybutylene Terephthalate (PBT) Glass Filled | Header | Circular | Latch Holder | 1 | All | 10 | Brass | 0.079 " | 2 mm | Tin | Male Pin | Shrouded - 4 Wall | Kinked Pin Solder | Board to Cable/Wire | Right Angle Through Hole | |
 Molex | Natural | 0.118 in | 3 mm | UL94 V-0 | 0.236 " | 6 mm | Polybutylene Terephthalate (PBT) Glass Filled | Header | Square | Latch Holder | 1 | All | 4 | Brass | 0.079 " | 2 mm | Tin | Male Pin | Shrouded - 4 Wall | Kinked Pin Solder | Board to Cable/Wire | Right Angle Through Hole | Board Guide |
