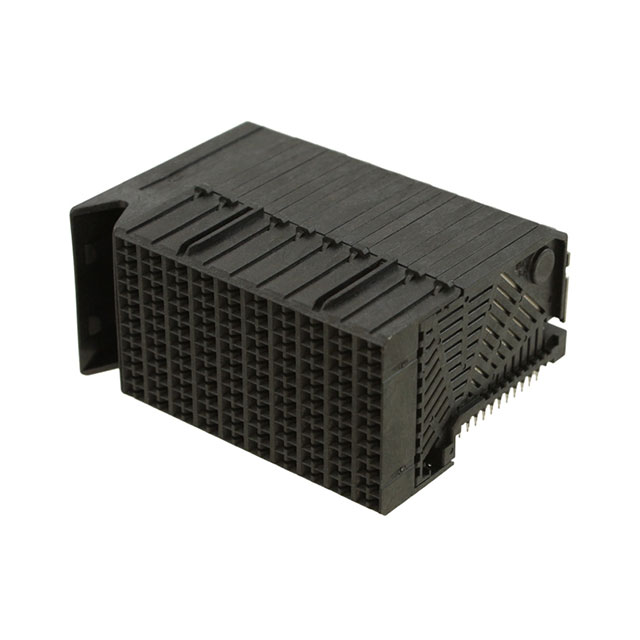

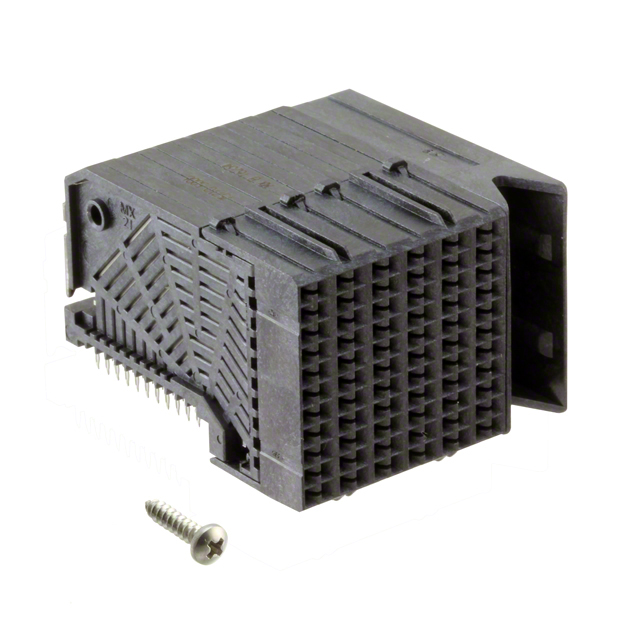

GbX I-Trac Right-Angle Daughtercard Module, 1.85mm by 3.70mm Pitch, Left Guide, 11 Rows, 8 Columns, 176 Circuits, Lead-Free, Polarization Key B
GbX I-Trac Right-Angle Daughtercard Module, 1.85mm by 3.70mm Pitch, Left Guide, 11 Rows, 8 Columns, 176 Circuits, Lead-Free, Polarization Key B
GbX I-Trac Right-Angle Daughtercard Module, 1.85mm by 3.70mm Pitch, Left Guide, 11 Rows, 8 Columns, 176 Circuits, Lead-Free, Polarization Key B
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Connector Style | Color | Number of Positions Loaded | Connector Usage | Number of Positions | Connector Type | Mounting Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Columns | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 120 VDC | -55 C | 80 °C | UL94 V-0 | I-Trac Guide Right | Black | All | Coplanar Daughtercard | 132 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 11 | 30 Áin | 0.76 Ám | 6 | Press-Fit | Gold |
 Molex | 120 VDC | -55 C | 80 °C | UL94 V-0 | I-Trac Guide Left | Black | All | Coplanar Daughtercard | 220 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 11 | 30 Áin | 0.76 Ám | 10 | Press-Fit | Gold |
