100057 Series

Catalog

CBL RIBN 37COND 0.05 RED 500'

Part	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Wire Gauge	Length [x]	Length [x]	Shielding	Voltage	Pitch	Pitch	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length	Length	Ribbon Width [custom]	Ribbon Width [custom]	First Conductor Mark	Length	Spool Size [x]	Spool Size [x]	Ribbon Thickness	Ribbon Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature	Number of Conductors [custom]
Molex - Temp Flex 1000570350	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	37	28 AWG	152.4 m	500 ft	Unshielded	300 VDC	0.05 in	1.27 mm	Red	-65 ░C	200 °C	Flat Cable	36 AWG	7 Strands
Molex - Temp Flex 1000570345	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	20	28 AWG			Unshielded	300 VDC	0.05 in	1.27 mm	Red	-55 C	200 °C	Flat Cable	36 AWG	7 Strands	UL Style 20424	100 '	30.48 m	25.4 mm	1 in

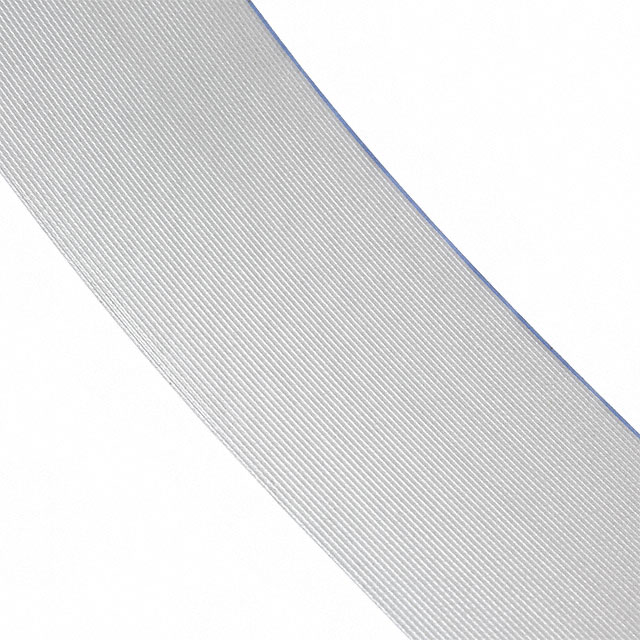

Molex - Temp Flex 1000570026	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	60	30 AWG			Unshielded	150 V	0.025 in	0.64 mm	Natural	-55 C	200 °C	Flat Cable	38 AWG	7 Strands	UL Style 20726	1 ft 25 ft	7.62 m 304.8 mm	38.1 mm	1.5 in	Blue	Enter Number of Feet in Order Quantity

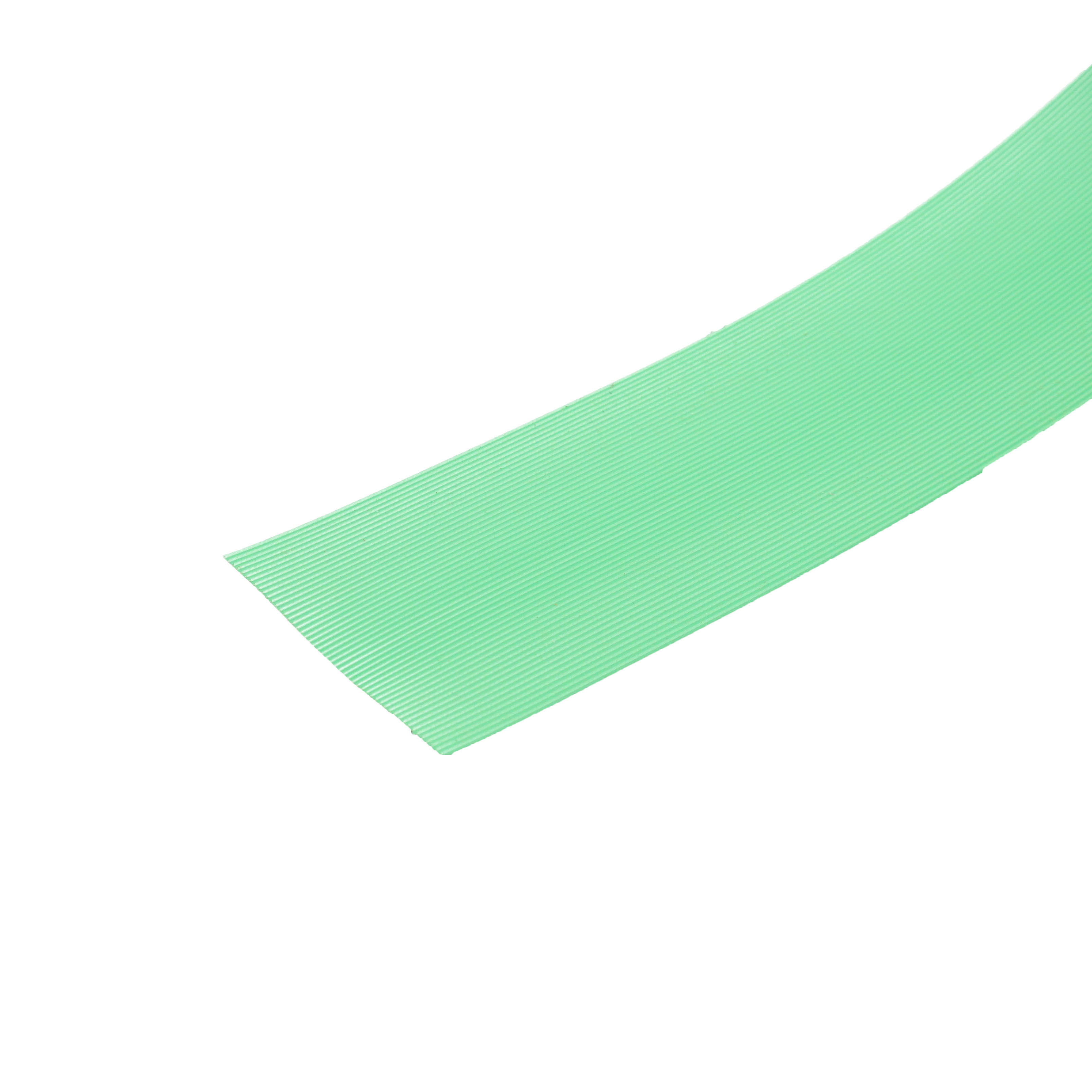

Molex - Temp Flex 1000570115	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	50	26 AWG			Unshielded	300 VDC	0.05 in	1.27 mm	Green			Flat Cable						63.5 mm	2.5 in		Enter Number of Feet in Order Quantity	30.48 m	100 ft	0.032 "	0.81 mm	7	34 AWG	200 °C

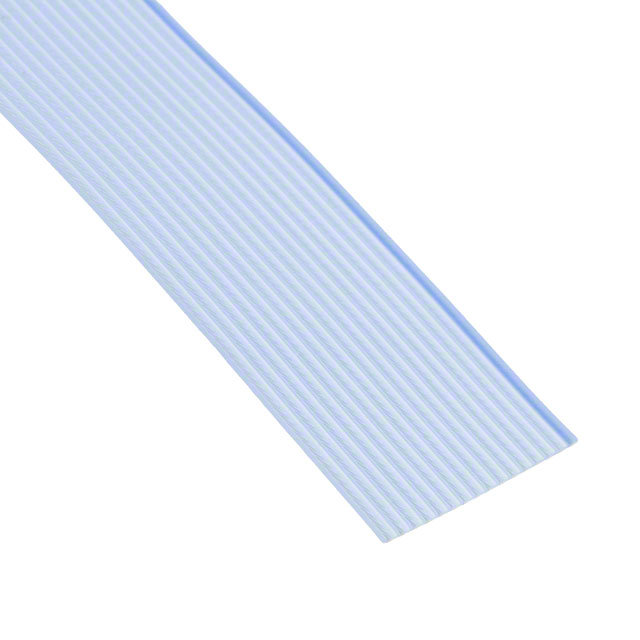

Molex - Temp Flex 1000570033	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	16	28 AWG	15.24 m	50 ft	Unshielded	300 VDC	0.05 in	1.27 mm	Blue	-55 C	200 °C	Flat Cable	36 AWG	7 Strands	UL Style 20424	25 ft	7.62 m	20.32 mm	0.8 in	Blue	Enter Number of Feet in Order Quantity

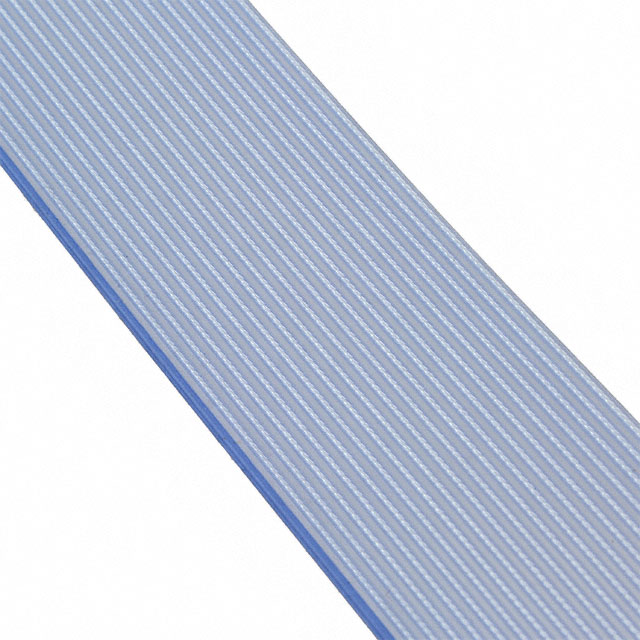

Molex - Temp Flex 1000570034	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	20	28 AWG	15.24 m	50 ft	Unshielded	300 VDC	0.05 in	1.27 mm	Blue	-55 C	200 °C	Flat Cable	36 AWG	7 Strands	UL Style 20424	1 ft	304.8 mm	25.4 mm	1 in	Blue	Enter Number of Feet in Order Quantity	30.48 m	100 ft
Molex - Temp Flex 1000570022	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	26	30 AWG	15.24 m	50 ft	Unshielded	150 V	0.025 in	0.64 mm	Natural	-55 C	200 °C	Flat Cable	38 AWG	7 Strands	UL Style 20726	1 ft 25 ft	7.62 m 304.8 mm	16.51 mm	0.65 in	Blue	Enter Number of Feet in Order Quantity
Molex - Temp Flex 1000570150	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)	14	28 AWG	152.4 m	500 ft	Unshielded	300 VDC	0.05 in	1.27 mm	Red			Flat Cable	36 AWG	7 Strands				17.78 mm	0.7 in					0.029 in	0.74 mm			200 °C
Molex - Temp Flex 1000570031	Copper Silver Coated	Fluorinated Ethylene-Propylene (FEP)		28 AWG			Unshielded	300 VDC	0.05 in	1.27 mm	Blue	-55 C	200 °C	Flat Cable	36 AWG	7 Strands	UL Style 20424	1 ft 25 ft	7.62 m 304.8 mm	12.7 mm	0.5 in	Blue	Enter Number of Feet in Order Quantity								10
Molex - Temp Flex 1000570360	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	60	26 AWG	152.4 m	500 ft	Unshielded	300 VDC	0.05 in	1.27 mm	Green	-65 ░C	200 °C	Flat Cable														7	34 AWG
