726-098 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 98POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows [custom]	Card Type	Contact Finish	Color	Termination	Contact Type	Pitch	Pitch	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out
EDAC Inc. 726-098-525-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual
EDAC Inc. 726-098-527-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual
EDAC Inc. 726-098-553-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit Wire Wrap	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual
EDAC Inc. 726-098-540-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit Wire Wrap	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual

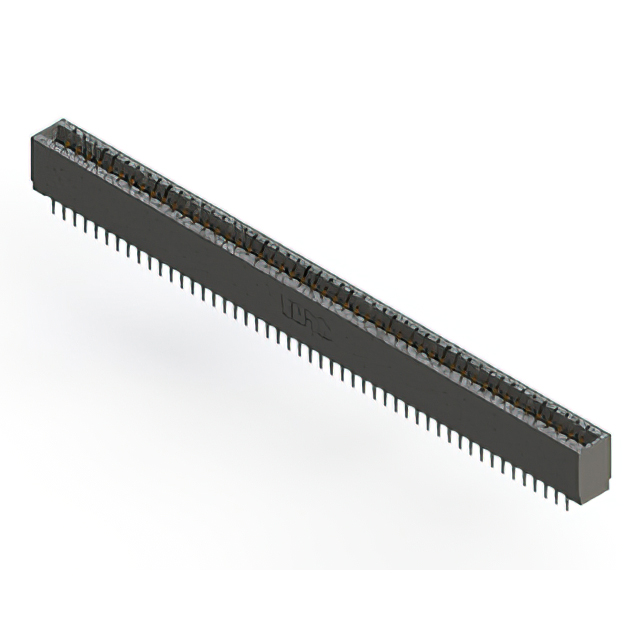

EDAC Inc. 726-098-520-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual

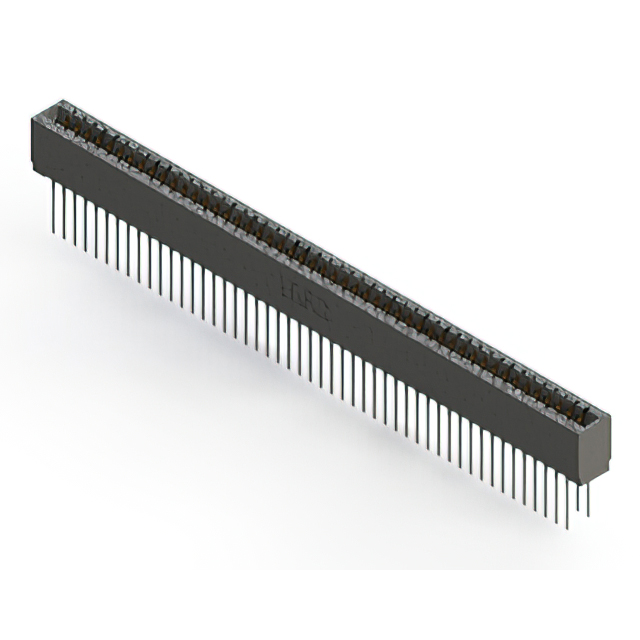

EDAC Inc. 726-098-545-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit Wire Wrap	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual
EDAC Inc. 726-098-541-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	49	98	30 Áin	0.76 Ám	Female	2	Non Specified - Dual Edge	Gold	Black	Press-Fit Wire Wrap	Cantilever	3.18 mm	0.125 in	Through Hole	-40 C	105 ░C	Dual
