1740197 Series

Catalog

CONN D-SUB PLUG 15P SMD R/A SLDR

Part	Shell Material, Finish	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Features	Mounting Type	Connector Style	Connector Type	Color	Dielectric Material	Flange Feature	Contact Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Material Flammability Rating
TE Connectivity Raychem Cable Protection 3-1740197-5	Nickel Plated Steel	Gold	Solder	105 ░C	-55 °C	4.5 A	Board Guide Grounding Indents Mounting Brackets	Surface Mount Right Angle	D-Sub	Male Pins Plug	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Female Screwlock (4-40) Mating Side	Signal	2	31.5 µin	0.8 µm	2	15
TE Connectivity Raychem Cable Protection 1-1740197-5	Nickel Plated Steel	Gold	Solder	105 ░C	-55 °C	4.5 A	Board Guide Grounding Indents Mounting Brackets	Surface Mount Right Angle	D-Sub	Male Pins Plug	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	4-40 Board Side	Signal	2	31.5 µin	0.8 µm	2	15

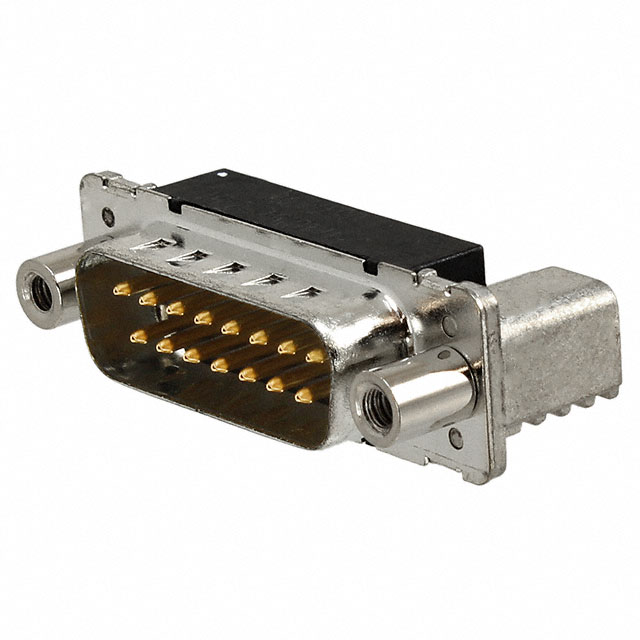

TE Connectivity Raychem Cable Protection 3-1740197-2		Gold	Solder	105 ░C	-55 °C		Board Guide Grounding Indents	Surface Mount Right Angle	D-Sub	Male Pins Plug	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Female Screwlock (4-40) Mating Side	Signal	2	31.5 µin	0.8 µm	2	15	UL94 V-0
