725-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 35POS 0.100

Part	Termination Rows	Material - Insulation	Contact Finish	Contact Material	Termination	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Read Out	Card Type	Pitch	Pitch	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 725-035-522-101	1	Polyester Thermoplastic	Gold	Copper Alloy	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	35	30 Áin	0.76 Ám	Black	35	Single	Non Specified - Single Edge	0.1 "	2.54 mm	1	Through Hole	-40 C	105 ░C
EDAC Inc. 725-035-520-101	1	Polyester Thermoplastic	Gold	Copper Alloy	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	35	30 Áin	0.76 Ám	Black	35	Single	Non Specified - Single Edge	0.1 "	2.54 mm	1	Through Hole	-40 C	105 ░C
EDAC Inc. 725-035-545-101	1	Polyester Thermoplastic	Gold	Copper Alloy	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	35	30 Áin	0.76 Ám	Black	35	Single	Non Specified - Single Edge	0.1 "	2.54 mm	1	Through Hole	-40 C	105 ░C
EDAC Inc. 725-035-540-101	1	Polyester Thermoplastic	Gold	Copper Alloy	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	35	30 Áin	0.76 Ám	Black	35	Single	Non Specified - Single Edge	0.1 "	2.54 mm	1	Through Hole	-40 C	105 ░C

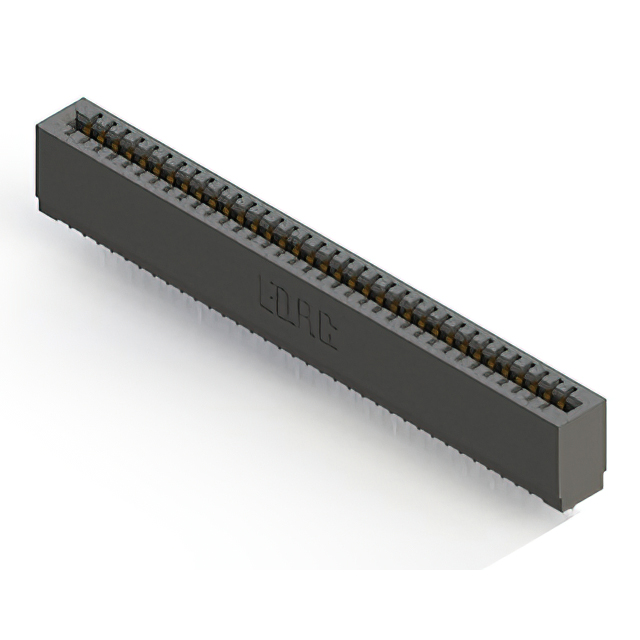

EDAC Inc. 725-035-525-101	1	Polyester Thermoplastic	Gold	Copper Alloy	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	35	30 Áin	0.76 Ám	Black	35	Single	Non Specified - Single Edge	0.1 "	2.54 mm	1	Through Hole	-40 C	105 ░C

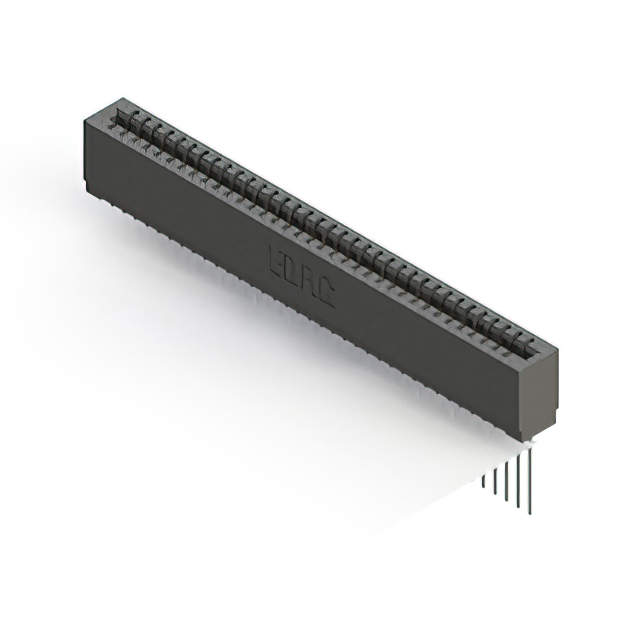

EDAC Inc. 725-035-541-101	1	Polyester Thermoplastic	Gold	Copper Alloy	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	35	30 Áin	0.76 Ám	Black	35	Single	Non Specified - Single Edge	0.1 "	2.54 mm	1	Through Hole	-40 C	105 ░C
