CONN012 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

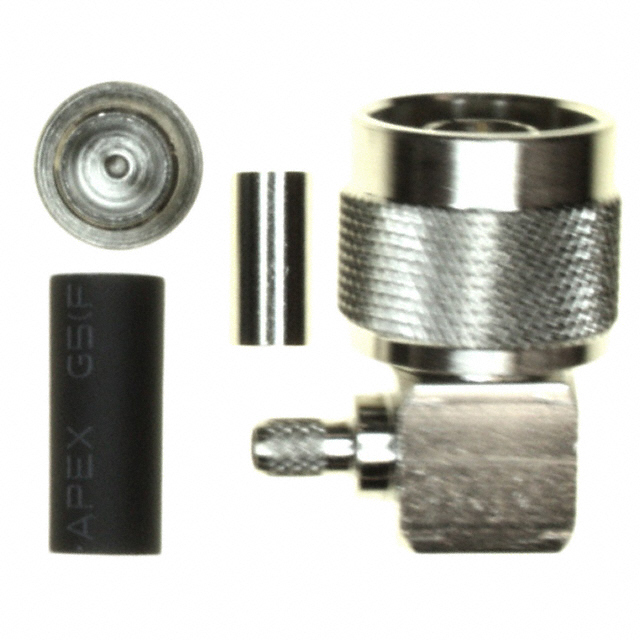

CONN N PLUG R/A 50 OHM SOLDER
| Part | Body Finish | Mating Cycles | Dielectric Material | Includes | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insertion Loss | Body Material | Number of Ports | Center Contact Material | Fastening Type | Impedance | Mounting Type | Cable Group | Contact Termination | Housing Color | Connector Style | Connector Type | Frequency - Max [Max] | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nickel | 500 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap 1 Ferrule | Gold | -65 ░C | 165 °C | 500 V | 0.3 dB | Brass | 1 | Brass | Threaded | 50 Ohms | Free Hanging (In-Line) Right Angle | RG-58 | Solder | Silver | N Type | Plug Male Pin | 11 GHz | Crimp |
