TCJX Series

Catalog

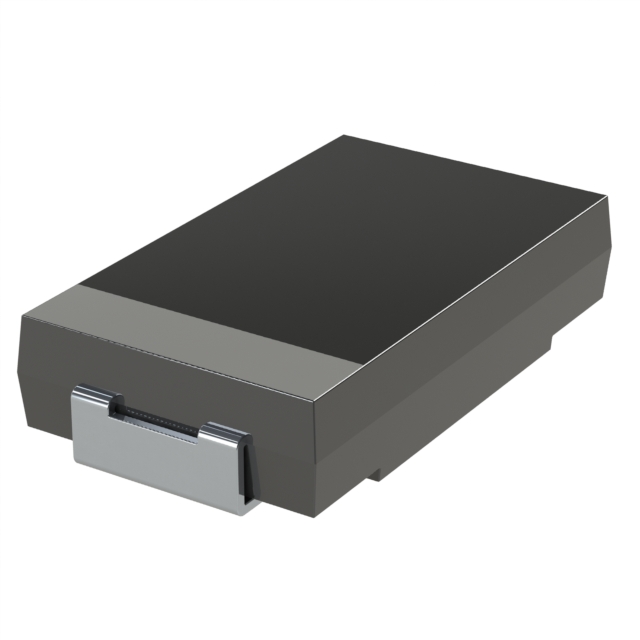

CAP TANT POLY 33UF 25V 2917

Part	Manufacturer Size Code	Features	Height - Seated (Max) [Max]	Height - Seated (Max)	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Package / Case
KYOCERA AVX TCJX336M025R0100E	X	General Purpose	0.059 "	1.5 mm	33 ÁF	20 %	-55 C	105 ░C	Molded	Surface Mount	25 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	100 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX476M020R0055	X	General Purpose	0.059 "	1.5 mm	47 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	20 V	0.169 "	7.3 mm	0.287 "	4.3 mm	55 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX336M025R0070	X	General Purpose	0.059 "	1.5 mm	33 ÁF	20 %	-55 C	105 ░C	Molded	Surface Mount	25 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	70 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX476M020R0070E	X	General Purpose	0.059 "	1.5 mm	47 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	20 V	0.169 "	7.3 mm	0.287 "	4.3 mm	70 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX477M006R0055E	X	General Purpose	0.059 "	1.5 mm	470 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	6.3 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	55 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX475M050R0250	X	General Purpose	0.059 "	1.5 mm	4.7 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	50 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	250 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX477M006R0050	X	General Purpose	0.059 "	1.5 mm	470 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	6.3 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	50 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX477M006R0050E	X	General Purpose	0.059 "	1.5 mm	470 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	6.3 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	50 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX476M016R0070	X	General Purpose	0.059 "	1.5 mm	47 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	16 V	0.169 "	7.3 mm	0.287 "	4.3 mm	70 mOhm	2000 Hrs	2917 (7343 Metric)
KYOCERA AVX TCJX477M006R0035E	X	General Purpose	0.059 "	1.5 mm	470 µF	20 %	-55 C	105 ░C	Molded	Surface Mount	6.3 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	35 mOhm	2000 Hrs	2917 (7343 Metric)
