1260 Series

Catalog

INDUSTRIAL SURGE PROTECTORS AC HYBRID SPD, 100KA, 3W,275VAC

Part	Form	Current - Discharge (Nom) (8/20µS)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Features	Current - Discharge (Max) (8/20µS) [Max]	Number of Poles	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Short Circuit Rating (SCCR)

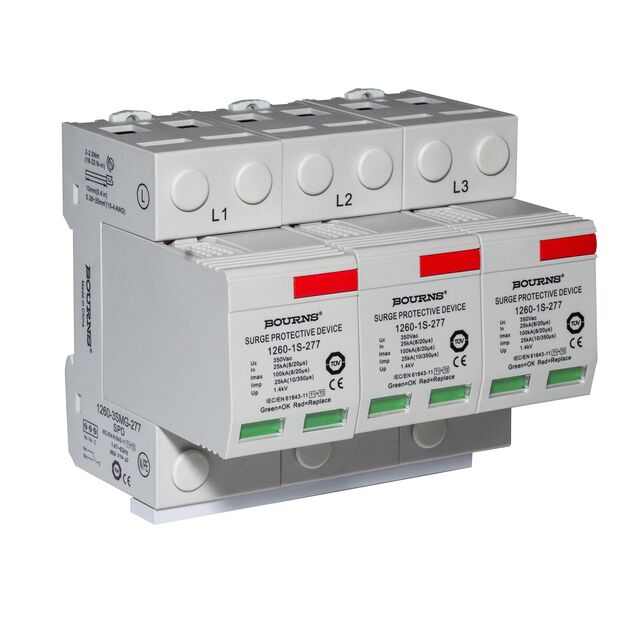

Bourns Inc. 1260-3S-230	Base + Module	25 kA	275 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	3	85 °C	-40 C	DIN Rail	50 kA
Bourns Inc. 1260-2S-127	Base + Module	25 kA	180 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	2	85 °C	-40 C	DIN Rail	50 kA
Bourns Inc. 1260-2NSMG-120	Base + Module	25 kA	150 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	1	85 °C	-40 C	DIN Rail	50 kA

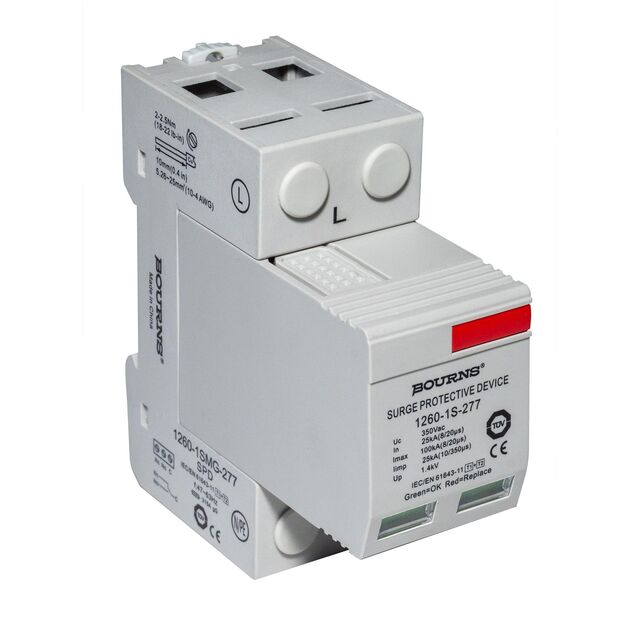

Bourns Inc. 1260-1SMG-277	Base + Module	25 kA	350 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	1	85 °C	-40 C	DIN Rail	50 kA

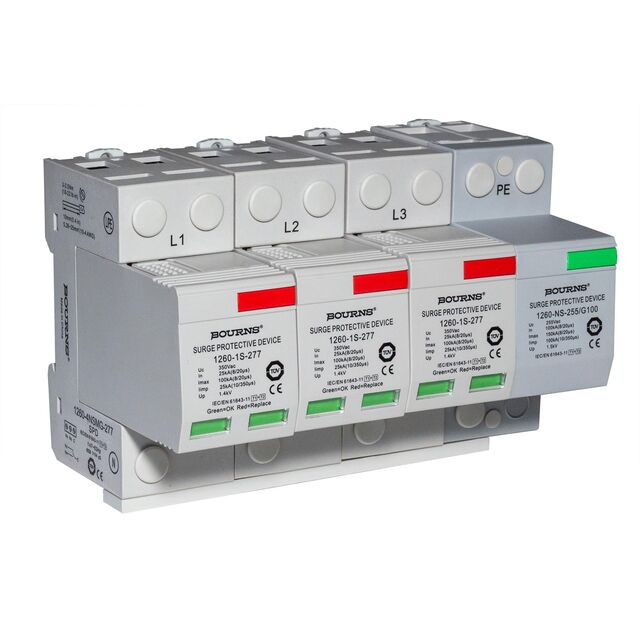

Bourns Inc. 1260-4SMG-127	Base + Module	25 kA	180 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	4	85 °C	-40 C	DIN Rail	50 kA
Bourns Inc. 1260-3SMG-480	Base + Module	25 kA	600 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	1	85 °C	-40 C	DIN Rail	50 kA
Bourns Inc. 1260-4NS-230	Base + Module	25 kA	275 VAC	Remote Signaling Contacts Visual Life Indicator	100 kA	4	85 °C	-40 C	DIN Rail	50 kA
