725-148 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 148POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Termination	Pitch	Pitch	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Card Type	Contact Type	Number of Positions/Bay/Row	Read Out	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Material

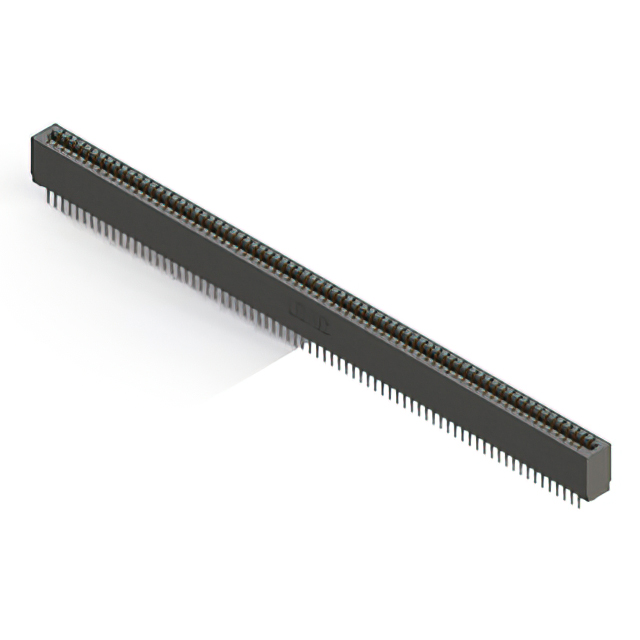

EDAC Inc. 725-148-560-201	Polyester Thermoplastic	2	Black	Press-Fit	0.1 "	2.54 mm	Gold	-40 C	105 ░C	148	Non Specified - Dual Edge	Cantilever Make Before Break	74	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	30 Áin	0.76 Ám	Copper Alloy
EDAC Inc. 725-148-545-201	Polyester Thermoplastic	2	Black	Press-Fit Wire Wrap	0.1 "	2.54 mm	Gold	-40 C	105 ░C	148	Non Specified - Dual Edge	Cantilever	74	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	30 Áin	0.76 Ám	Copper Alloy

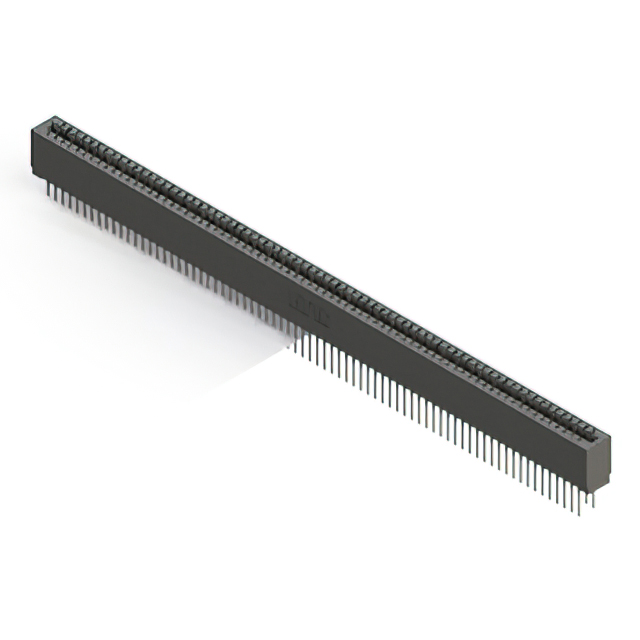

EDAC Inc. 725-148-522-201	Polyester Thermoplastic	2	Black	Press-Fit	0.1 "	2.54 mm	Gold	-40 C	105 ░C	148	Non Specified - Dual Edge	Cantilever	74	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	30 Áin	0.76 Ám	Copper Alloy

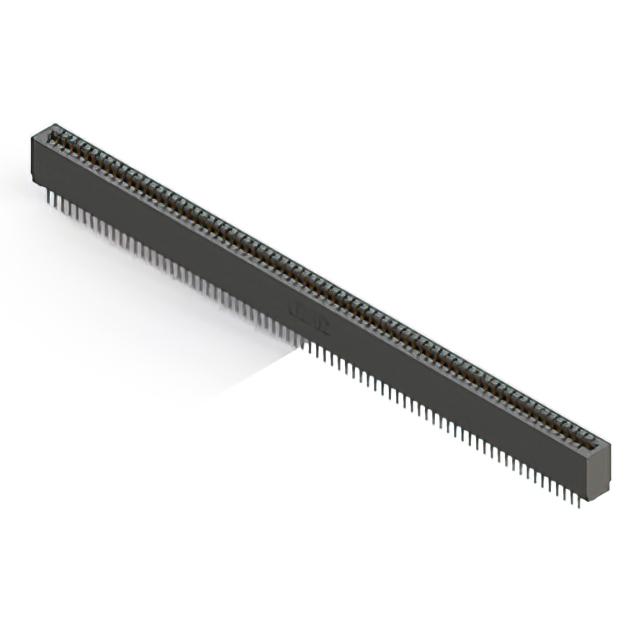

EDAC Inc. 725-148-525-201	Polyester Thermoplastic	2	Black	Press-Fit	0.1 "	2.54 mm	Gold	-40 C	105 ░C	148	Non Specified - Dual Edge	Cantilever	74	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	30 Áin	0.76 Ám	Copper Alloy
