RP10-EW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W DC/DC 1.6KV REG 4:1 9-36VIN +/-5OUT

...

Part	Package / Case	Number of Outputs	Control Features	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Type	Voltage - Output 2	Voltage - Isolation	Power (Watts)	Current - Output (Max)	Mounting Type	Applications	Voltage - Input (Max) [Max]	Features	Size / Dimension	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Recom Power RP10-2405DEW/N-HC	6-DIP Module	2	Active Low Enable	80 %	9 V	85 °C	-25 °C	5 V	Isolated Module	-5 V	1.6 kV	10 W	1 A	Through Hole	ITE (Commercial)	36 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP10-4812DEW/P/M2-HC	6-DIP Module	2	Active High Enable	78 %	18 V	85 °C	-40 C	12 V	Isolated Module	-12 V	1.6 kV	10 W		Through Hole	ITE (Commercial)	75 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	416 mA	416 mA

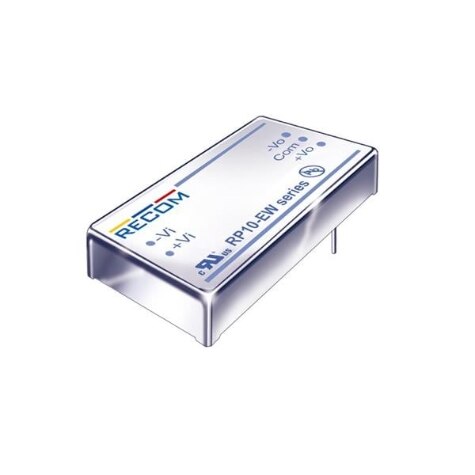

Recom Power RP10-4815DEW/N/M2-HC	6-DIP Module	2	Active Low Enable	81 %	18 V	85 °C	-40 C	15 V	Isolated Module	-15 V	1.6 kV	10 W	333 mA	Through Hole	ITE (Commercial)	75 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP10-4805SEW/N	6-DIP Module	1	Active Low Enable	80 %	18 V	85 °C	-25 °C	5 V	Isolated Module		1.6 kV	10 W		Through Hole	ITE (Commercial)	75 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	2 A
Recom Power RP10-4805DEW	6-DIP Module	2		81 %	18 V	85 °C	-25 °C	5 V	Isolated Module	-5 V	1.6 kV	10 W	1 A	Through Hole	ITE (Commercial)	75 V	OCP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP10-2415SEW/P-HC	6-DIP Module	1	Active High Enable	80 %	9 V	85 °C	-25 °C	15 V	Isolated Module		1.6 kV	10 W		Through Hole	ITE (Commercial)	36 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	670 mA
Recom Power RP10-2405DEW/P	6-DIP Module	2	Active High Enable	80 %	9 V	85 °C	-25 °C	5 V	Isolated Module	-5 V	1.6 kV	10 W	1 A	Through Hole	ITE (Commercial)	36 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP10-2415DEW	6-DIP Module	2		80 %	9 V	85 °C	-25 °C	15 V	Isolated Module	-15 V	1.6 kV	10 W	333 mA	Through Hole	ITE (Commercial)	36 V	OCP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP10-2405SEW/P	6-DIP Module	1	Active High Enable	80 %	9 V	85 °C	-25 °C	5 V	Isolated Module		1.6 kV	10 W		Through Hole	ITE (Commercial)	36 V	OCP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	2 A
Recom Power RP10-2405DEW	6-DIP Module	2		80 %	9 V	85 °C	-25 °C	5 V	Isolated Module	-5 V	1.6 kV	10 W	1 A	Through Hole	ITE (Commercial)	36 V	OCP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm
