1971923 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

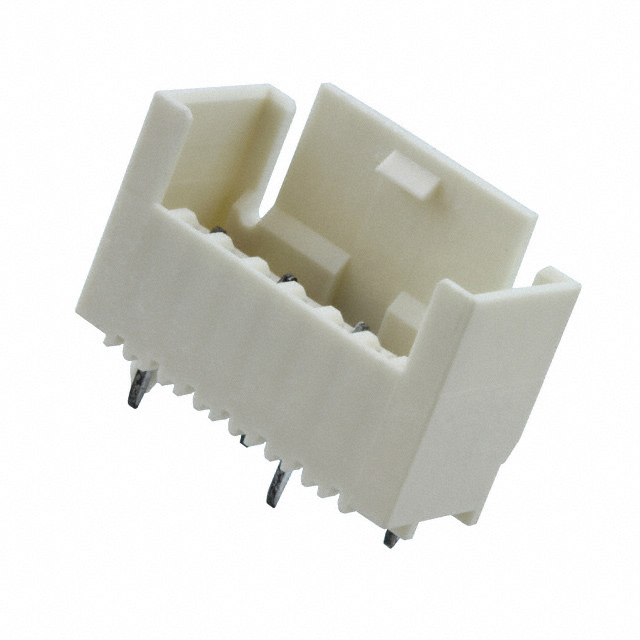

4/7P,RAST 2.5 TAB HEADER,EX- LOCKING,THV
| Part | Applications | Mounting Type | Features | Style | Number of Rows | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Shrouding | Contact Shape | Number of Positions Loaded | Fastening Type | Contact Finish - Mating | Contact Type | Insulation Color | Contact Finish - Post | Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | Through Hole | Board Guide Glow Wire Compliant | Board to Cable/Wire | 1 | 7 | 2.5 mm | 0.098 in | Nylon Polyamide (PA) | 0.114 in | 2.9 mm | Copper Alloy | UL94 V-0 | 120 °C | -40 C | 0.61 in | 15.49 mm | Shrouded - 4 Wall | Rectangular | 4 | Locking Ramp | Silver | Tab | Natural | Silver | Solder | Header |
