TWW Series

Manufacturer: Ohmite

Catalog

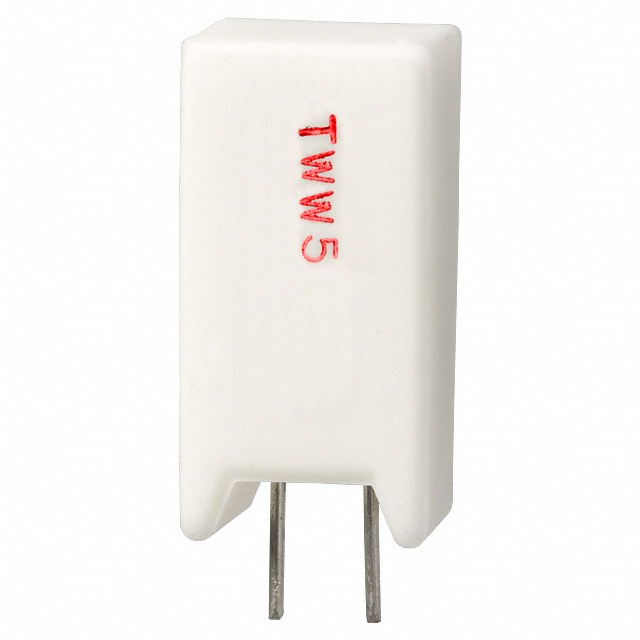

WIREWOUND RESISTORS - THROUGH HOLE 5WATT .1OHM 5% VERTICAL MOUNT

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations [custom]	Power (Watts)	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Resistance	Tolerance	Supplier Device Package	Package / Case	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient
Ohmite TWW5JR10E	12.5 mm	0.354 in	9 mm	0.492 "	2	5 W	Wirewound	-55 C	275 °C	26 mm	1.024 in	±400ppm/°C	0.1 Ohms	5 %	Radial	Radial	Flame Proof Safety

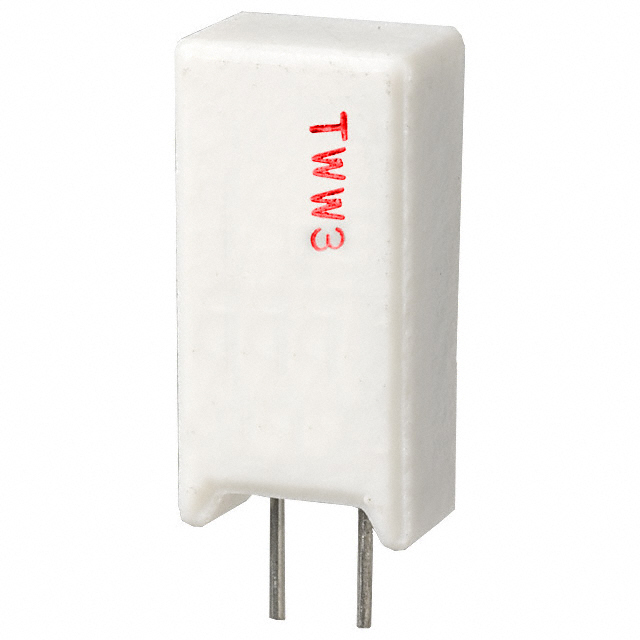

Ohmite TWW3JR20E	12.5 mm	0.335 in 0.354 in	8.5 mm 9 mm	0.492 "	2	3 W	Wirewound	-55 C	275 °C	26 mm	1.024 in	±400ppm/°C	200 mOhms	5 %	Radial Radial Lead	Radial	Flame Proof Safety
Ohmite TWW10J10RE	12.5 mm	0.354 in	9 mm	0.492 "	2	10 W	Wirewound	-55 C	275 °C			±400ppm/°C	10 Ohms	5 %	Radial	Radial	Flame Proof Safety	51 mm	2.008 in
Ohmite TWW20JR10E	20 mm	0.512 "	13 mm	0.787 "	2	20 W	Wirewound	-55 C	275 °C			±400ppm/°C	0.1 Ohms	5 %	Radial	Radial	Flame Proof Safety	46 mm	1.811 in
Ohmite TWW5J7R5E	12.5 mm	0.354 in	9 mm	0.492 "	2	5 W	Wirewound	-55 C	275 °C	26 mm	1.024 in	±400ppm/°C	7.5 Ohms	5 %	Radial	Radial	Flame Proof Safety
Ohmite TWW10J56RE	12.5 mm	0.354 in	9 mm	0.492 "	2	10 W	Wirewound	-55 C	275 °C				56 Ohms	5 %	Radial	Radial	Flame Proof Safety	51 mm	2.008 in	350 ppm/°C
Ohmite TWW3J8R2E	12.5 mm	0.335 in 0.354 in	8.5 mm 9 mm	0.492 "	2	3 W	Wirewound	-55 C	275 °C	26 mm	1.024 in	±400ppm/°C		5 %	Radial Radial Lead	Radial	Flame Proof Safety
Ohmite TWW3J1R0E	12.5 mm	0.335 in 0.354 in	8.5 mm 9 mm	0.492 "	2	3 W	Wirewound	-55 C	275 °C	26 mm	1.024 in	±400ppm/°C	1 Ohms	5 %	Radial Radial Lead	Radial	Flame Proof Safety
Ohmite TWW3J2R0E	12.5 mm	0.335 in 0.354 in	8.5 mm 9 mm	0.492 "	2	3 W	Wirewound	-55 C	275 °C	26 mm	1.024 in	±400ppm/°C	2 Ohms	5 %	Radial Radial Lead	Radial	Flame Proof Safety
Ohmite TWW10J750E	12.5 mm	0.354 in	9 mm	0.492 "	2	10 W	Wirewound	-55 C	275 °C				750 Ohms	5 %	Radial	Radial	Flame Proof Safety	51 mm	2.008 in	350 ppm/°C
