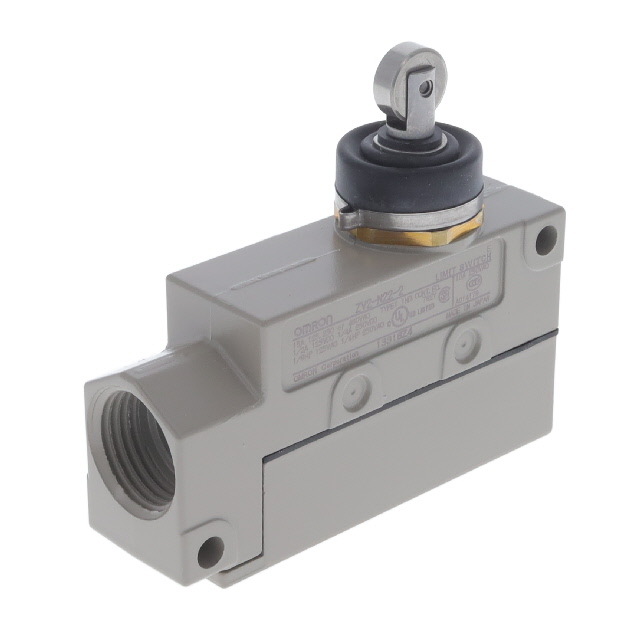

ZV2-N22 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Voltage Rating - AC | Operating Force | Operating Position | Operating Position | Voltage Rating - DC | Mechanical Life | Overtravel [custom] | Overtravel [custom] | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Actuator Type | Mounting Type | Ingress Protection | Differential Travel | Differential Travel | Termination Style | Current Rating (Amps) | Circuit | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 125 V | 0.5 kgf | 35.7 mm | 1.405 in | 125 VDC | 10000000 Cycles | 0.138 " | 3.5 mm | On-Mom | -10 °C | 80 °C | 500000 Cycles | Roller Plunger | Chassis Mount | IP65 - Dust Tight Water Resistant | 0.005 in | 0.13 mm | Screw Terminal | 15 A 500 mA | SPDT | 0.04 in | 1 mm |
