324597 Series

Catalog

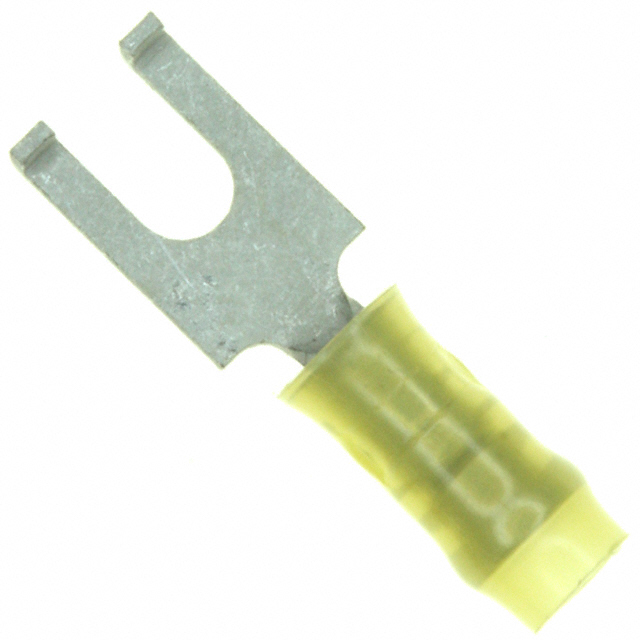

CONN SPADE TERM 22-26AWG #2 YEL

Part	Material - Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Terminal Type	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges	Width - Outer Edges	Contact Finish	Stud/Tab Size	Features
TE Connectivity Raychem Cable Protection 8-324597-2	Nylon Polyamide (PA)	2.36 mm	0.093 in	Insulated	Flanged	Yellow	0.203 in	5.16 mm	Free Hanging (In-Line)	16.94 mm	0.667 in	Crimp	22 AWG	26 AWG	Copper	0.082 "	2.08 mm	0.05 in	1.27 mm	0.331 in	8.41 mm	4.62 mm	0.182 "	Tin	2 Stud	Serrated Termination
