WRT Series

Catalog

ANTENNAS ANTENNA DOME WIFI6 2.4/5.8GHZ 1.32 UFL

Part	Termination	Termination	Height (Max) [z]	Height (Max) [z]	Features	Features	Frequency Range [Max]	Frequency Range [Min]	Gain	Power - Max [Max]	Frequency (Center/Band)	Mounting Type	Number of Bands	Applications	Antenna Type	VSWR	Frequency Group	Frequency Group [Max]	Frequency Group [Min]

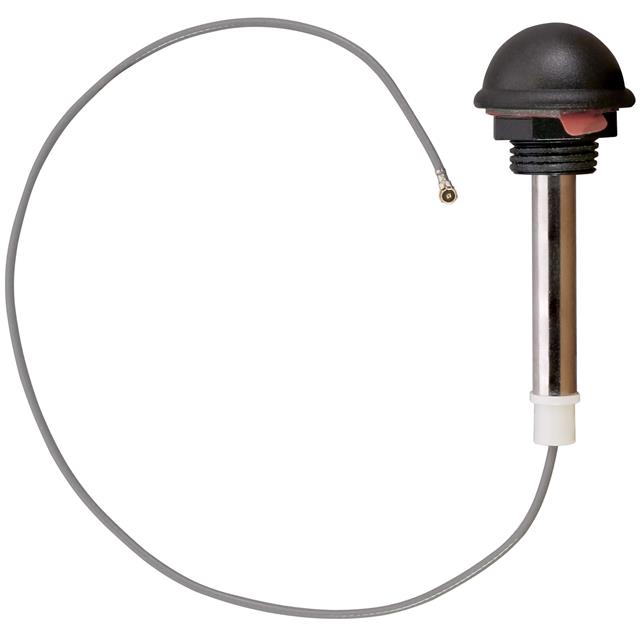

TE Connectivity AMP Connectors ANT-DB1-WRT-UFL-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.394 in	10 mm	Cable	100 mm	5.85 GHz 7.125 GHz 2485 MHz	2.4 GHz 5.15 GHz 5.925 GHz	3.2 dBi 6.8 dBi 7 dBi	5 W	2.4425 GHz 5.5 GHz 6525 MHz	Panel Mount	3	Bluetooth ISM Wi-Fi WLAN Zigbee™	Dome	1.9 3.7 4	SHF UHF

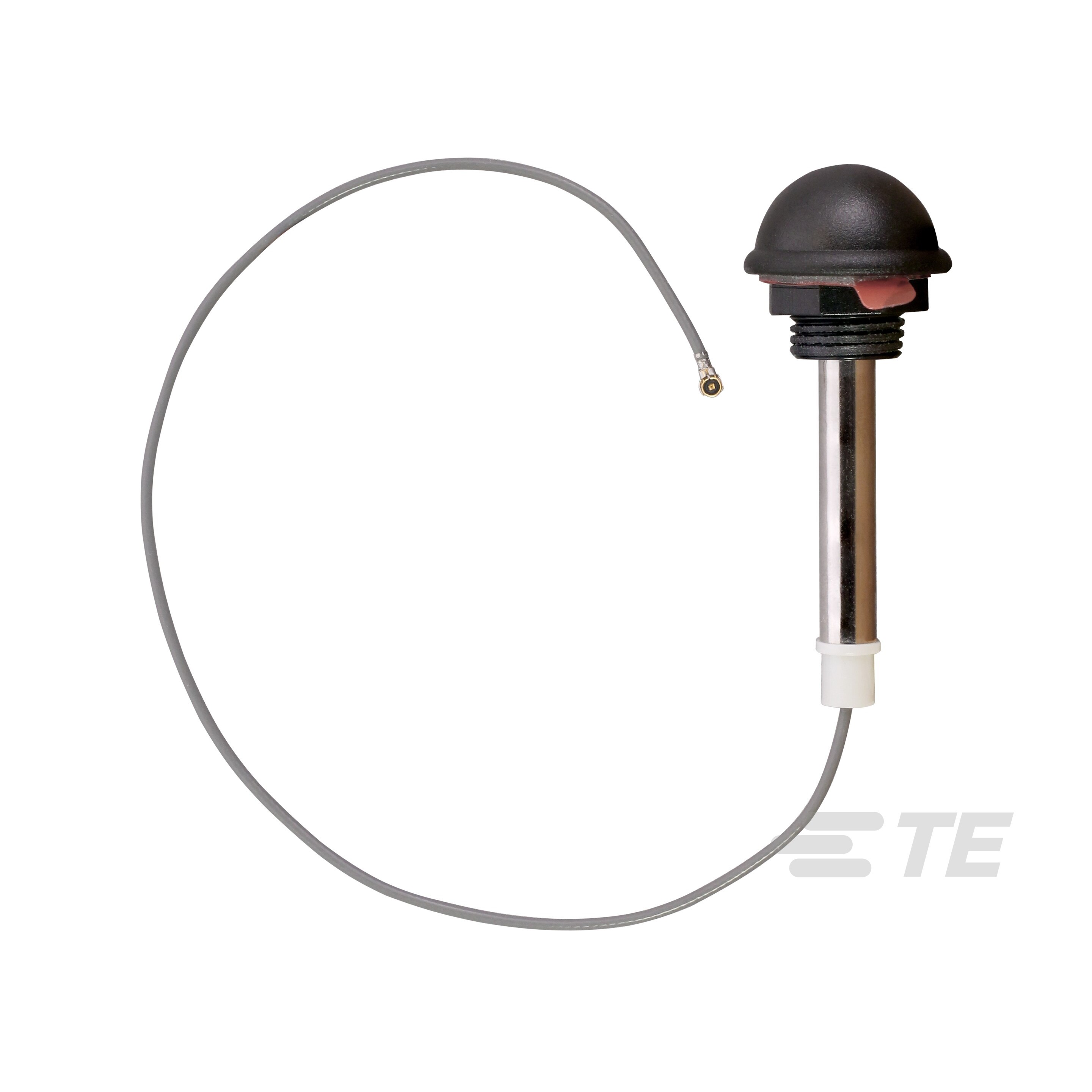

TE Connectivity AMP Connectors ANT-DB1-WRT-MHF3		I-PEX MHF3	0.394 in	10 mm	Cable - 216mm		5.85 GHz 7.125 GHz 2485 MHz	2.4 GHz 5.15 GHz 5.925 GHz	3.2 dBi 6.8 dBi 7 dBi	5 W	2.4425 GHz 5.5 GHz 6525 MHz	Panel Mount	3	802.11n/ac/ax Bluetooth ISM Wi-Fi Zigbee™	Dome	1.9 3.7 4	SHF UHF

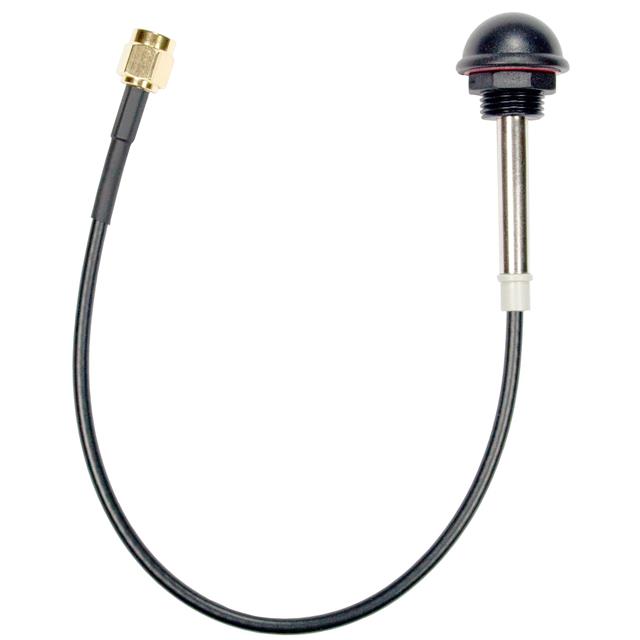

TE Connectivity AMP Connectors ANT-DB1-WRT-SMA-150			0.394 in	10 mm	Cable - 150mm		5.85 GHz 7.125 GHz 2485 MHz	2.4 GHz 5.15 GHz 5.925 GHz	3.2 dBi 6.8 dBi 7 dBi	5 W	2.4425 GHz 5.5 GHz 6525 MHz	Panel Mount	3	Bluetooth ISM Wi-Fi WLAN Zigbee™	Dome	1.9 3.7 4	SHF UHF
TE Connectivity AMP Connectors ANT-433-WRT-UFL-300	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	1.063 in	27 mm	Cable - 300mm		435 MHz	430 MHz	-1.8 dBi	5 W	433 MHz	Panel Mount	1	Sensor Networks	Dome	1.4	UHF	1 GHz	300 MHz
