EXB-U Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
FIXED NETWORK RESISTOR, 82 OHM, ISOLATED, 4 RESISTORS, 0804 [2010 METRIC], CONVEX, ± 5%
| Part | Temperature Coefficient | Qualification | Power Per Element | Supplier Device Package | Mounting Type | Grade | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Circuit Type | Resistance (Ohms) [custom] | Package / Case | Tolerance | Number of Resistors | Number of Pins | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) | Package / Case | Resistance (Ohms) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0804 | Surface Mount | Automotive | 0.039 in | 1 mm | 0.079 in | 2 mm | Isolated | 82 Ohms | 0804 Convex Long Side Terminals | 5 % | 4 | 8 | 0.018 " | 0.45 mm | -55 C | 125 °C | ||||||

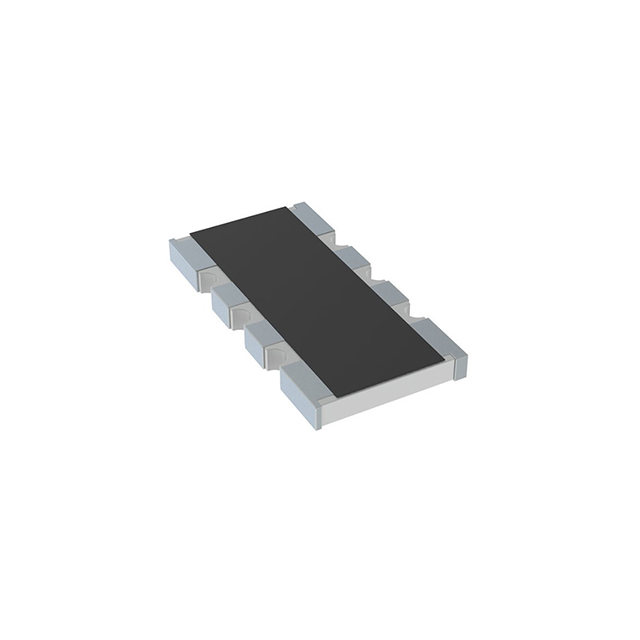

 Panasonic Electronic Components | 200 ppm/°C | 31 mW | 0302 | Surface Mount | 0.024 " | 0.6 mm | 0.031 in | 0.8 mm | Isolated | 0302 (0805 Metric) Convex Long Side Terminals | 5 % | 2 | 4 | 0.018 " | 0.45 mm | -55 C | 125 °C | 51 kOhms | ||||||||
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0404 | Surface Mount | Automotive | 0.039 in | 1 mm | 0.039 " | 1 mm | Isolated | 0404 Convex | 5 % | 2 | 4 | 0.018 " | 0.45 mm | -55 C | 125 °C | 20 kOhms | 1010 Metric | |||||
 Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0606 | Surface Mount | Automotive | 0.063 " | 0.063 " | 1.6 mm | Isolated | 0606 Convex | 5 % | 2 | 4 | -55 C | 125 °C | 150k | 0.6 mm | 0.024 in | 1.6 mm | ||||||
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0404 | Surface Mount | Automotive | 0.039 in | 1 mm | 0.039 " | 1 mm | Isolated | 0404 Convex | 5 % | 2 | 4 | 0.018 " | 0.45 mm | -55 C | 125 °C | 1010 Metric | 10k | |||||
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 31 mW | Surface Mount | Automotive | 0.024 " | 0.6 mm | 0.055 " | 1.4 mm | Isolated | 0502 (1406 Metric) Convex Long Side Terminals | 5 % | 4 | 8 | 0.018 " | 0.45 mm | -55 C | 125 °C | 3.6 kOhms | |||||||
Panasonic Electronic Components | AEC-Q200 | 63 mW | 0804 | Surface Mount | Automotive | 0.039 in | 1 mm | 0.079 in | 2 mm | Isolated | 0804 Convex Long Side Terminals | 5 % | 4 | 8 | 0.018 " | 0.45 mm | -55 C | 125 °C | 3.9 Ohms | |||||||
 Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0606 | Surface Mount | Automotive | 0.063 " | 0.063 " | 1.6 mm | Isolated | 0606 Convex | 5 % | 2 | 4 | -55 C | 125 °C | 30 Ohms | 0.6 mm | 0.024 in | 1.6 mm | ||||||
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0404 | Surface Mount | Automotive | 0.039 in | 1 mm | 0.039 " | 1 mm | Isolated | 10 M | 0404 Convex | 5 % | 2 | 4 | 0.018 " | 0.45 mm | -55 C | 125 °C | 1010 Metric | |||||
Panasonic Electronic Components | 200 ppm/°C | AEC-Q200 | 63 mW | 0804 | Surface Mount | Automotive | 0.039 in | 1 mm | 0.079 in | 2 mm | Isolated | 510 Ohms | 0804 Convex Long Side Terminals | 5 % | 4 | 8 | 0.018 " | 0.45 mm | -55 C | 125 °C |
