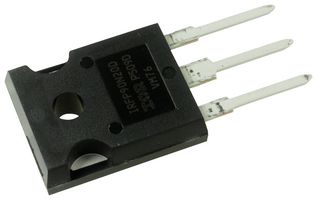

IRFP90 Series
Manufacturer: INFINEON
Beta
⌘K
POWER MOSFET, N CHANNEL, 200 V, 94 A, 0.023 OHM, TO-247AC, THROUGH HOLE
| Part | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds [Max] | Vgs (Max) | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Package / Case | Vgs(th) (Max) @ Id | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Power Dissipation (Max) | Technology | Gate Charge (Qg) (Max) @ Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | TO-247AC | 6040 pF | 30 V | 23 mOhm | 200 V | TO-247-3 | 5 V | Through Hole | 175 °C | -55 °C | 10 V | N-Channel | 580 W | MOSFET (Metal Oxide) | 270 nC |
