TMB-E5 Series
Manufacturer: Amphenol CDI
Beta
⌘K

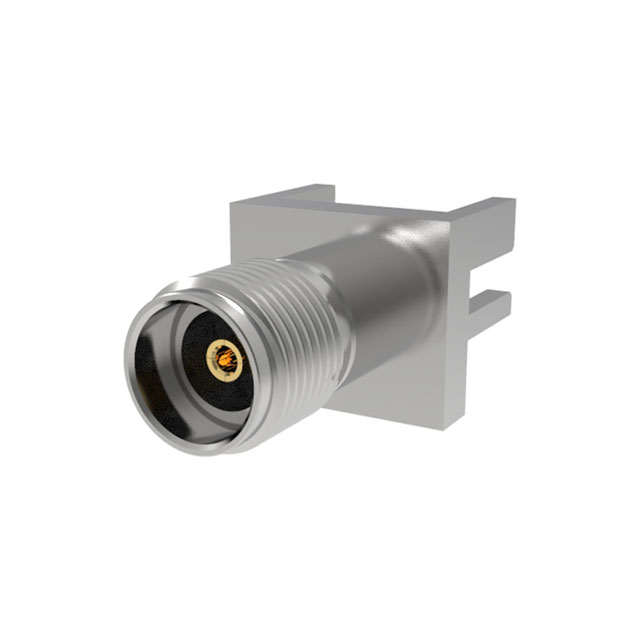

3.5(F)STR,EL,SOLDER
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Body Material | Insertion Loss | Voltage Rating | Frequency - Max [Max] | Contact Termination | Number of Ports | Impedance | Mounting Type | Connector Style | Shield Termination | Housing Color | Fastening Type | Connector Type | Center Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CDI | Gold | -65 ░C | 165 °C | Gold | 500 | Brass | 0.6 dB | 400 V | 34 GHz | Solder | 1 | 50 Ohms | Board Edge End Launch | 3.5mm | Solder | Gold | Threaded | Female Socket Jack | Beryllium Copper | |
Amphenol CDI | Gold | -65 ░C | 165 °C | Gold | 500 | Brass | 0.6 dB | 400 V | 34 GHz | Solder | 1 | 50 Ohms | Board Edge End Launch | 3.5mm | Solder | Gold | Threaded | Female Socket Jack | Beryllium Copper | |

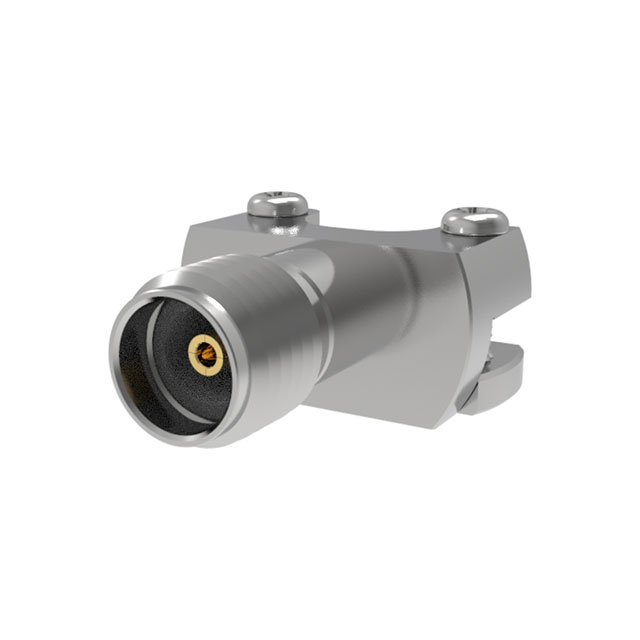

 Amphenol CDI | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | 0.2 dB | 400 V | 34 GHz | Compression | 1 | 50 Ohms | Board Edge End Launch | 3.5mm | Screw | Silver | Threaded | Female Socket Jack | Beryllium Copper | Field Replaceable For Hermetically Sealed Pin | |
Amphenol CDI | 34 GHz | Compression | 1 | 50 Ohms | Board Edge End Launch | 3.5mm | Screw | Silver | Threaded | Female Socket Jack | Beryllium Copper | Field Replaceable For Hermetically Sealed Pin |
