ALCOSWITCH DST Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

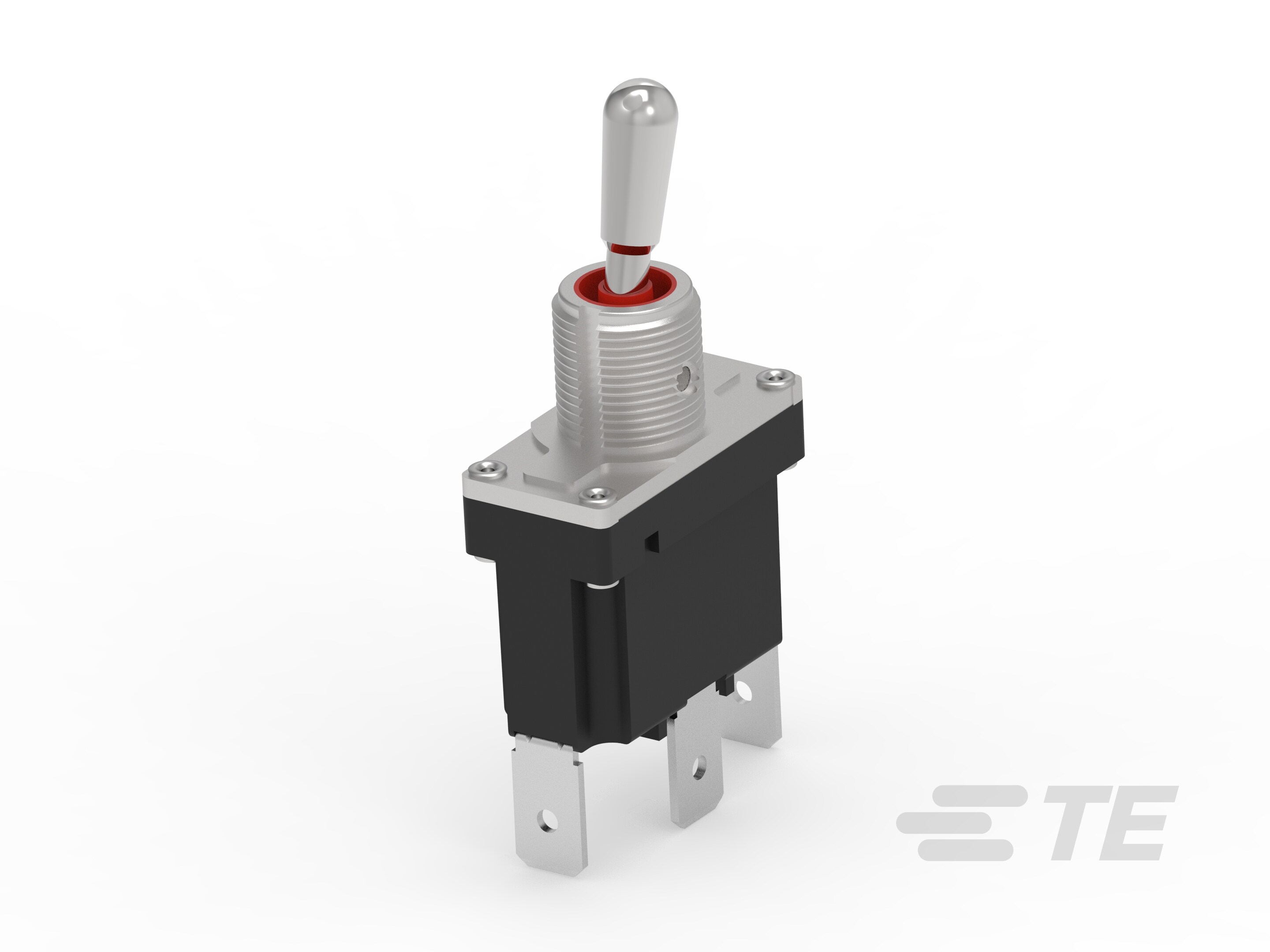

DST TOGGLE 1P 12A SLDTAB ON-NONE-(ON)

Part	Actuator Type	Bushing Thread	Current Rating (Amps)	Circuit	Mounting Type	Switch Function	Illumination	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Ingress Protection	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors DST12SY251	Flatted	15/32-32	12 A	SPDT	Panel Mount	On-Off-On	Non-Illuminated	125 V	11.91 mm	22.2 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
TE Connectivity AMP Connectors DST12DY255	Flatted	15/32-32	12 A	DPDT	Panel Mount	On-Off-On	Non-Illuminated	125 V	11.9 mm	22.2 mm	IP67 - Dust Tight Waterproof	Screw Terminal	85 °C	-30 ░C
TE Connectivity AMP Connectors DST12SS254	Standard Round	15/32-32	12 A	SPDT	Panel Mount	On-Off-On	Non-Illuminated	125 V	11.91 mm	16.74 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
TE Connectivity AMP Connectors DST12DY353	Flatted	15/32-32	12 A	DPDT	Panel Mount	Mom-Off-Mom	Non-Illuminated	125 V	11.91 mm	22.2 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
TE Connectivity AMP Connectors DST12DS353	Standard Round	15/32-32	12 A	DPDT	Panel Mount	Mom-Off-Mom	Non-Illuminated	125 V	11.91 mm	16.74 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
TE Connectivity AMP Connectors DST12SY635	Flatted	15/32-32	12 A	SPST	Panel Mount	On-Off	Non-Illuminated	125 V	11.91 mm	22.2 mm	IP67 - Dust Tight Waterproof	Screw Terminal	85 °C	-40 C
TE Connectivity AMP Connectors DST12SS355	Standard Round	15/32-32	12 A	SPDT	Panel Mount	Mom-Off-Mom	Non-Illuminated	125 V	11.91 mm	16.74 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
TE Connectivity AMP Connectors DST12SS253	Standard Round	15/32-32	12 A	SPDT	Panel Mount	On-Off-On	Non-Illuminated	125 V	11.91 mm	16.74 mm	IP67 - Dust Tight Waterproof	Screw Terminal	85 °C	-40 C
TE Connectivity AMP Connectors DST12DY354	Flatted	15/32-32	12 A	DPDT	Panel Mount	Mom-Off-Mom	Non-Illuminated	125 V	11.91 mm	22.2 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
TE Connectivity AMP Connectors DST12SS255	Standard Round	15/32-32	12 A	SPDT	Panel Mount	On-Off-On	Non-Illuminated	125 V	11.91 mm	16.74 mm	IP67 - Dust Tight Waterproof	Quick Connect - 0.250" (6.3mm)	85 °C	-40 C
