OAB400 Series
Manufacturer: ORION FANS
Beta
⌘K

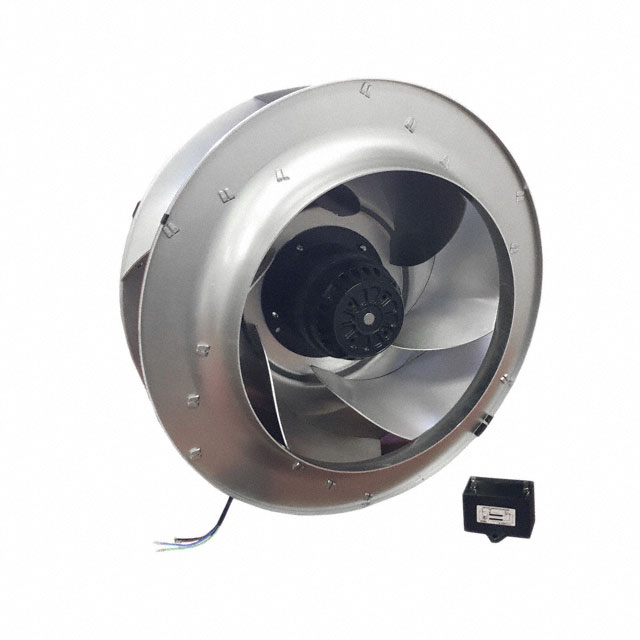

FAN BLOWER, CENTRIFUGAL, 230 VAC, AC, 404 MM, 162 MM, 1900 CFM
| Part | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Material - Blade | Ingress Protection | Features | RPM | Fan Type | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Termination | Weight | Weight | Bearing Type | Power (Watts) | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Width [x] | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | 1.26 A | Aluminum | Metal | IP55 - Dust Protected Water Resistant | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1250 RPM | Motorized Impellers | Round | 404 mm | 230 VAC | 4 Wire Leads | 12 lbs | 5.4 kg | Ball | 287 W | 1900 CFM | 53.2 m³/min | -40 C | 50 °C | -40 °C | 50 °C | 73 dB(A) | 162.4 mm | 5.4 in H2O | 1345.1 Pa |
