PM4346 Series

Catalog

POWER INDUCTORS - SMD 5.6UH 11.5A 3.5MM AEC-Q200 +/-20%

Part	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Ratings	Mounting Type	Frequency - Self Resonant	Shielding	Type	Inductance Frequency - Test	Inductance	Current Rating (Amps)	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)
Pulse Electronics PM4346.562NLT	-55 C	125 °C	16.5 mOhm	0.197 in	5 mm	22 A	AEC-Q200	Surface Mount	13 MHz	Unshielded	Molded	100 kHz	5.6 µH	11.5 A	Nonstandard	20 %	12.5 mm	13.5 mm	0.531 in	0.492 "
Pulse Electronics PM4346.471NLT	-55 C	125 °C		0.197 in	5 mm	65 A	AEC-Q200	Surface Mount		Unshielded	Molded	100 kHz	470 nH	38 A	Nonstandard	20 %	12.5 mm	13.5 mm	0.531 in	0.492 "	1.1 mOhm

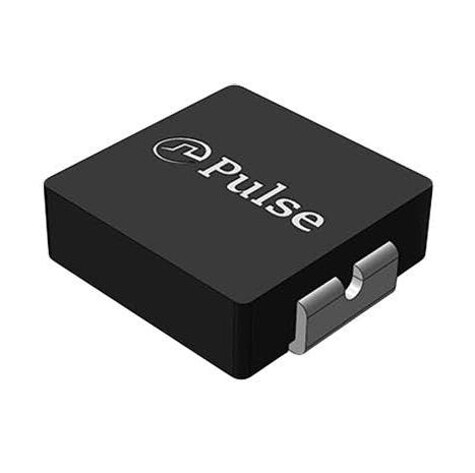

Pulse Electronics PM4346.331NLT	-55 C	125 °C		0.197 in	5 mm	80 A	AEC-Q200	Surface Mount	90 MHz	Unshielded	Molded	100 kHz	330 nH	42 A	Nonstandard	20 %	12.5 mm	13.5 mm	0.531 in	0.492 "
