LM63610-Q1 Series

3.5-V to 36-V, 1.0-A step-down voltage converter with spread spectrum

Catalog

3.5-V to 36-V, 1.0-A step-down voltage converter with spread spectrum

Part	Qualification	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Output Type	Output Configuration	Topology	Number of Outputs	Function	Package / Case	Frequency - Switching	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Synchronous Rectifier	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Grade	Current - Output	Package / Case

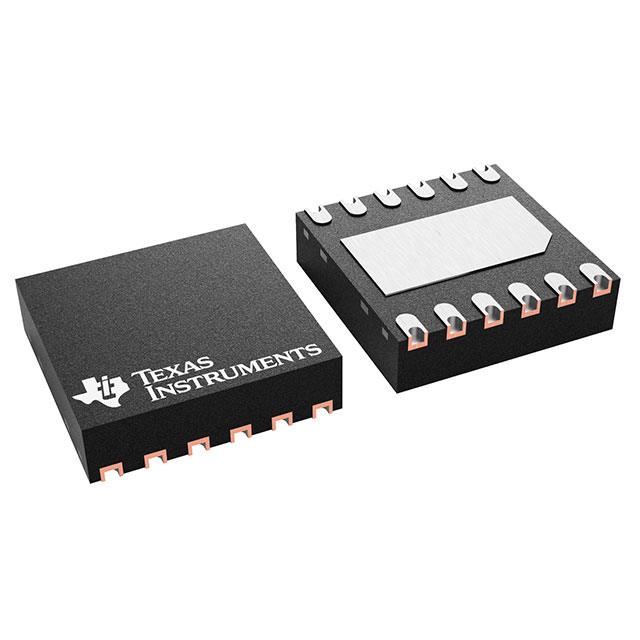

Texas Instruments LM63610DQDRRRQ1	AEC-Q100	36 V	1 V	12-WSON (3x3)	Adjustable	Positive	Buck	1	Step-Down	12-WFDFN Exposed Pad	2.1 MHz 400 kHz	2.2 MHz	250 kHz	3.5 V	20 V		-40 °C	125 °C	Surface Mount Wettable Flank	Automotive	1 A
Texas Instruments LM63610DQPWPRQ1	AEC-Q100	36 V	1 V	16-HTSSOP	Adjustable	Positive	Buck	1	Step-Down	16-PowerTSSOP		2.35 MHz	1.85 MHz	3.5 V	20 V		-40 °C	125 °C	Surface Mount	Automotive	1 A	0.173 in 4.4 mm Width

Catalog

3.5-V to 36-V, 1.0-A step-down voltage converter with spread spectrum

Key Features

• AEC-Q100-qualified for automotive applicationsDevice temperature grade 1: –40°C to +125°C ambient operating temperatureFunctional Safety-CapableDocumentation available to aid functional safety system designSupports automotive system requirementsInput voltage range: 3.5 V to 36 VShort minimum on-time of 50 nsGood performance Pseudo-random spread spectrum Compatible with CISPR 25Low operating quiescent current of 23 µAJunction temperature range –40°C to +150°CHigh design flexibilityPin selectable VOUT: 3.3 V, 5 V, adjustable 1 V to 20 VPin compatible withLM63615/LM63625/LM63635(1.5 A, or 2.5 A, and 3.25 A)Pin selectable frequency: 400 kHz, 2.1 MHz, adjustable 250 kHz to 2200 kHzPin selectable FPWM, AUTO, sync modesTSSOP: Thermally-enhanced packageWSON: For space-constrained applicationsSmall solution sizeHighly integrated solutionLow component countAEC-Q100-qualified for automotive applicationsDevice temperature grade 1: –40°C to +125°C ambient operating temperatureFunctional Safety-CapableDocumentation available to aid functional safety system designSupports automotive system requirementsInput voltage range: 3.5 V to 36 VShort minimum on-time of 50 nsGood performance Pseudo-random spread spectrum Compatible with CISPR 25Low operating quiescent current of 23 µAJunction temperature range –40°C to +150°CHigh design flexibilityPin selectable VOUT: 3.3 V, 5 V, adjustable 1 V to 20 VPin compatible withLM63615/LM63625/LM63635(1.5 A, or 2.5 A, and 3.25 A)Pin selectable frequency: 400 kHz, 2.1 MHz, adjustable 250 kHz to 2200 kHzPin selectable FPWM, AUTO, sync modesTSSOP: Thermally-enhanced packageWSON: For space-constrained applicationsSmall solution sizeHighly integrated solutionLow component count

Description

The LM63610-Q1 regulators are a family of easy-to-use, synchronous, step-down DC/DC converters designed for rugged automotive applications. The LM63610-Q1 can drive up to 1 A of load current from an input of up to 36 V. The converter has high light load efficiency and output accuracy in a small solution size. Features such as aRESETflag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM63610-Q1 is available in both the HTSSOP 16-pin power package, with PowerPAD™, and the WSON 12-pin power package. Please contact Texas Instruments for availability of the WSON package. The LM63610-Q1 regulators are a family of easy-to-use, synchronous, step-down DC/DC converters designed for rugged automotive applications. The LM63610-Q1 can drive up to 1 A of load current from an input of up to 36 V. The converter has high light load efficiency and output accuracy in a small solution size. Features such as aRESETflag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM63610-Q1 is available in both the HTSSOP 16-pin power package, with PowerPAD™, and the WSON 12-pin power package. Please contact Texas Instruments for availability of the WSON package.
