737-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 16POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Read Out	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch	Pitch	Number of Positions/Bay/Row	Card Type	Number of Rows [custom]	Gender	Contact Material	Termination	Contact Finish	Termination Rows	Number of Rows
EDAC Inc. 737-016-541-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	Black	Through Hole	30 Áin	0.76 Ám	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	Female	Copper Alloy	Press-Fit Wire Wrap	Gold

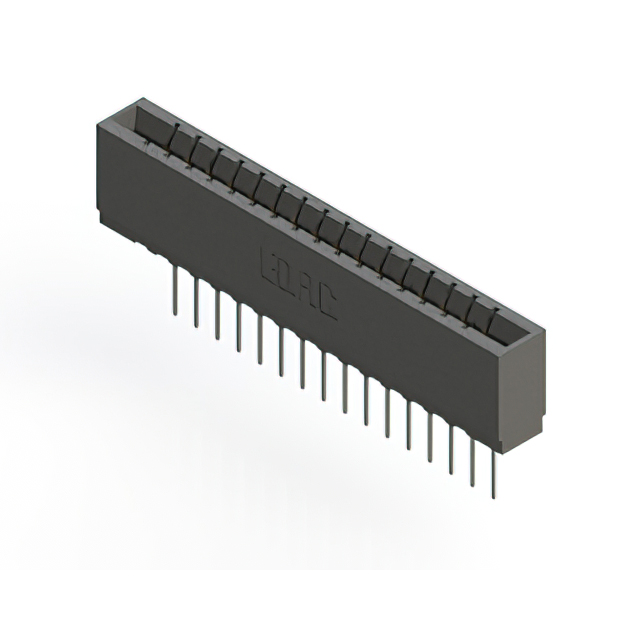

EDAC Inc. 737-016-545-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Single	Black	Through Hole	30 Áin	0.76 Ám	16	3.96 mm	0.156 in	16	Non Specified - Single Edge		Female	Copper Alloy	Press-Fit Wire Wrap	Gold	1	1

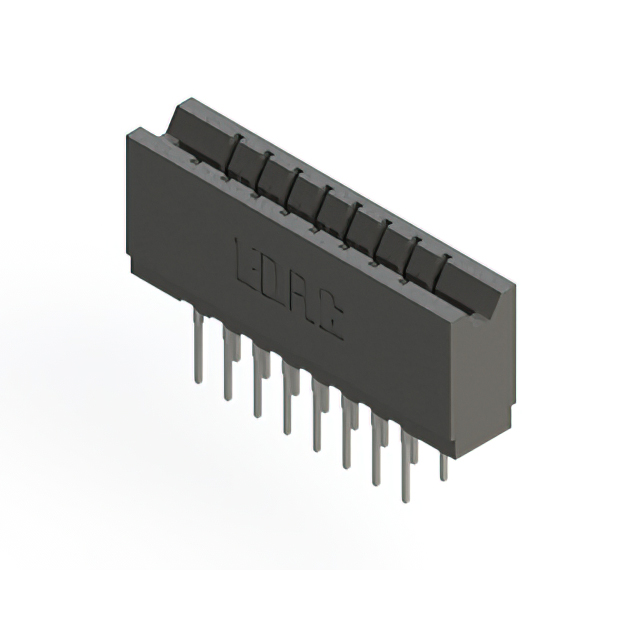

EDAC Inc. 737-016-522-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	Black	Through Hole	30 Áin	0.76 Ám	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	Female	Copper Alloy	Press-Fit	Gold

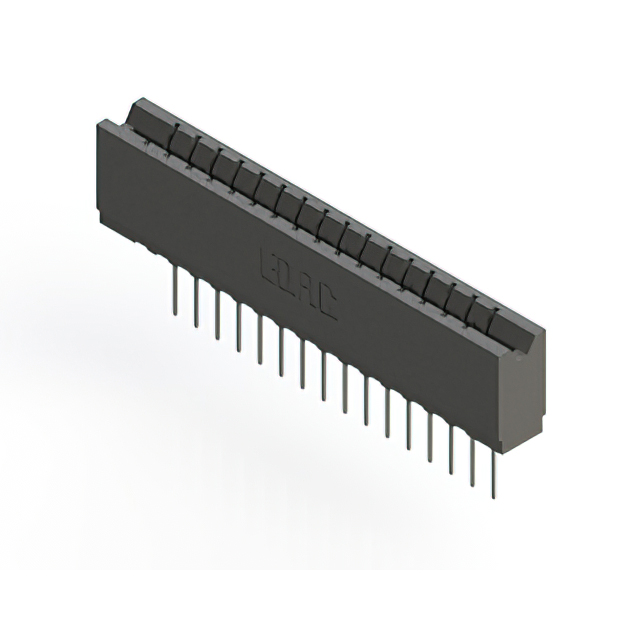

EDAC Inc. 737-016-540-106	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Single	Black	Through Hole	30 Áin	0.76 Ám	16	3.96 mm	0.156 in	16	Non Specified - Single Edge		Female	Copper Alloy	Press-Fit Wire Wrap	Gold	1	1
EDAC Inc. 737-016-540-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	Black	Through Hole	30 Áin	0.76 Ám	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	Female	Copper Alloy	Press-Fit Wire Wrap	Gold
