175-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

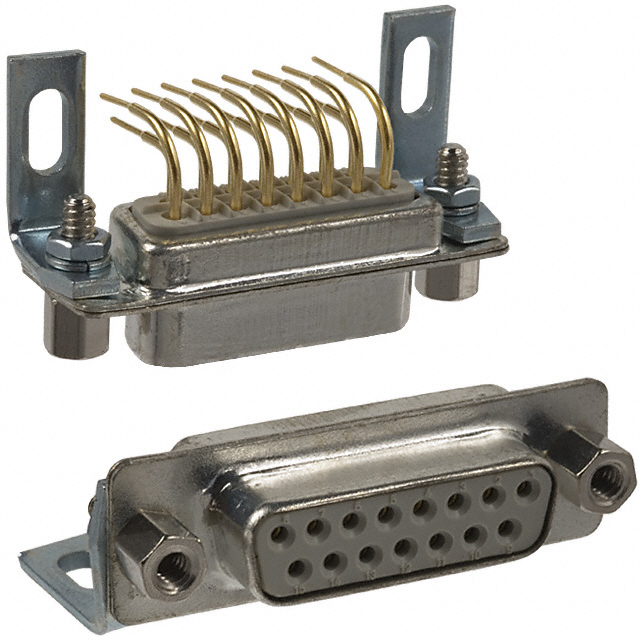

CONN D-SUB RCPT 15POS R/A SOLDER
| Part | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Flange Feature | Connector Style | Termination | Features | Number of Rows [custom] | Contact Finish | Material Flammability Rating | Connector Type | Mounting Type | Current Rating (Amps) | Number of Positions | Backset Spacing | Backset Spacing | Contact Type | Contact Finish Thickness | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Beige | Brass | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) Polyester | 4-40 Mating Side Female Screwlock | D-Sub | Solder | Mounting Brackets | 2 | Gold | UL94 V-0 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 5 A | 15 | 0.454 " | 11.53 mm | Signal | Flash | 2 |
 NorComp Inc. | Beige | Brass | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) Polyester | 4-40 Mating Side Female Screwlock | D-Sub | Solder | Grounding Indents Mounting Brackets | 2 | Gold | UL94 V-0 | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 A | 15 | 0.454 " | 11.53 mm | Signal | Flash | 2 |
