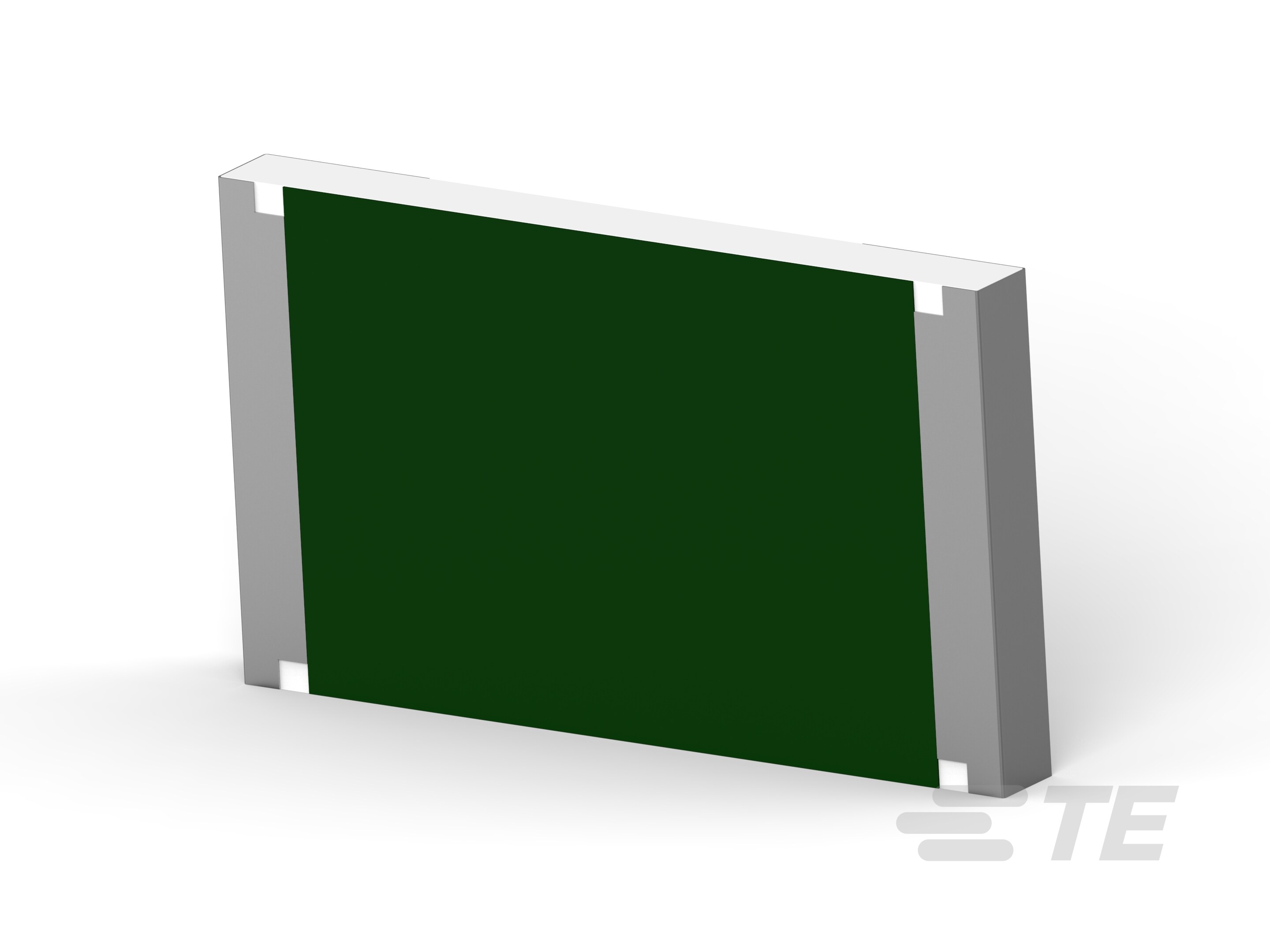

CGS 3560 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

RES 3560 390R 5%

...

Part	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Tolerance	Package / Case	Composition	Temperature Coefficient	Number of Terminations [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ratings
TE Connectivity AMP Connectors 3560390RJT	390 Ohms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	5 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200
TE Connectivity AMP Connectors 35604M7FT	4.7 MOhms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200	AEC-Q200
TE Connectivity AMP Connectors 35602K2FT	2200 Ohms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200	AEC-Q200
TE Connectivity AMP Connectors 356030RFT	30 Ohms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200
TE Connectivity AMP Connectors 35601M2JT	1.2 MOhms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	5 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200
TE Connectivity AMP Connectors 3560120RFT	120 Ohms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200	AEC-Q200
TE Connectivity AMP Connectors 3560130KFT	130 kOhms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200	AEC-Q200
TE Connectivity AMP Connectors 3560470KFT	470 kOhms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200
TE Connectivity AMP Connectors 35603M3JT	3.3 MOhms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	5 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200	AEC-Q200
TE Connectivity AMP Connectors 356056RFT	56 Ohms	0.457 in	11.6 mm	0.27 in	6.85 mm	6 W	1 %	Nonstandard	Thick Film	100 ppm/°C	2	1.2 mm	0.047 "	155 C	-55 C	Automotive AEC-Q200
