PPPC241 Series

Catalog

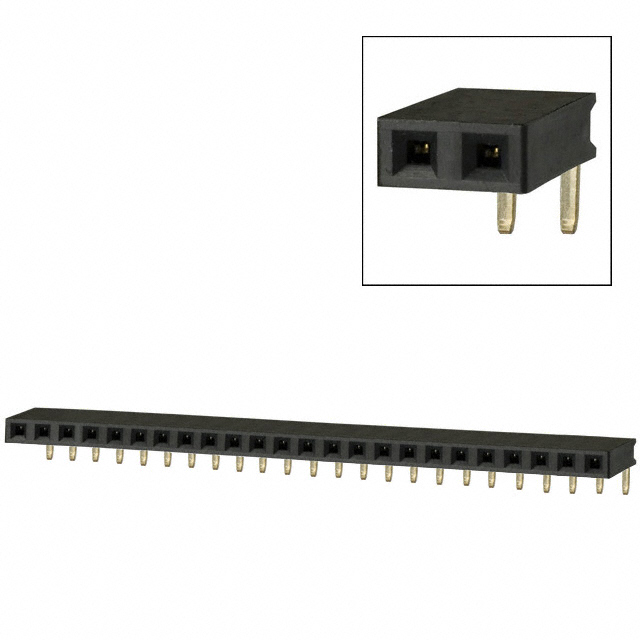

CONN HDR 24POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions	Connector Type	Contact Finish - Mating	Contact Finish - Post	Contact Type	Fastening Type	Termination
Sullins Connector Solutions PPPC241LGBN-RC	Square	Flash	Polyester	Phosphor Bronze	0.1 "	2.54 mm	0.1 in	2.54 mm	UL94 V-0	Flash	3 A	250 V	Right Angle Through Hole	All	-40 C	105 ░C	1	Black	0.124 in	3.15 mm	24	Header	Gold	Gold	Female Socket	Push-Pull	Solder
