5636A Series

Manufacturer: APEM Inc.

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Termination Style	Current Rating (Amps)	Illumination	Circuit	Bushing Thread	Features	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Actuator Length [x]

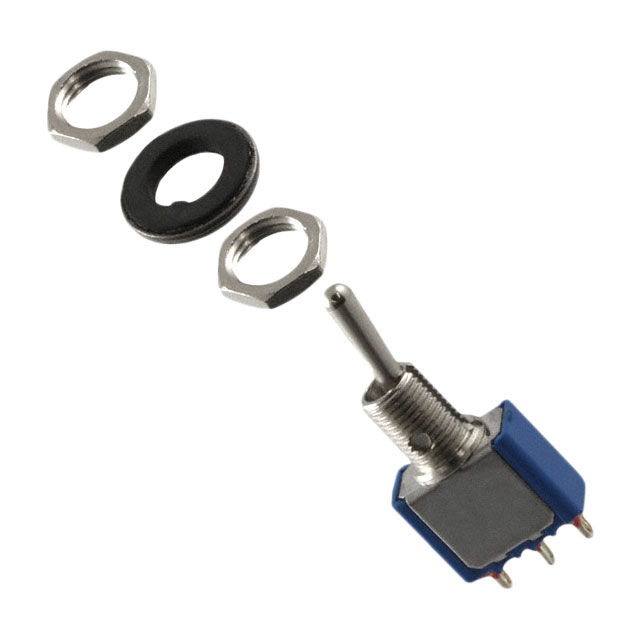

APEM Inc. 5636AKB	Brass Nickel Plated	50000 Cycles	Solder Lug	4 A 6 A	Non-Illuminated	SPDT	1/4-40	Front Panel Sealing	30 V	On-On	125 V	6.5 mm	85 °C	-40 C	Standard Round	Panel Mount
APEM Inc. 5636AKB2V	Brass Nickel Plated	50000 Cycles	Solder Lug	4 A 6 A	Non-Illuminated	SPDT	1/4-40	Front Panel Sealing	30 V	On-On	125 V	6.5 mm	85 °C	-40 C	Locking Lever	Panel Mount	14.75 mm

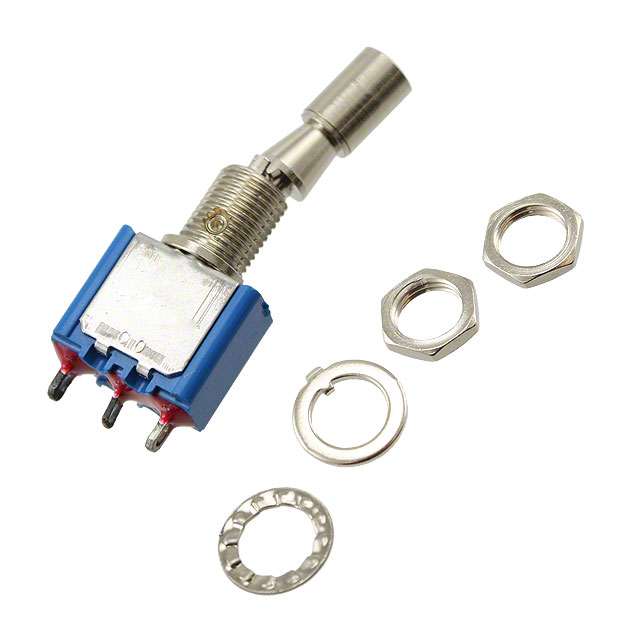

APEM Inc. 5636AB2V	Brass Nickel Plated	50000 Cycles	Solder Lug	4 A 6 A	Non-Illuminated	SPDT	1/4-40	Epoxy Sealed Terminals	30 V	On-On	125 V	6.5 mm	85 °C	-40 C	Locking Lever	Panel Mount	14.75 mm

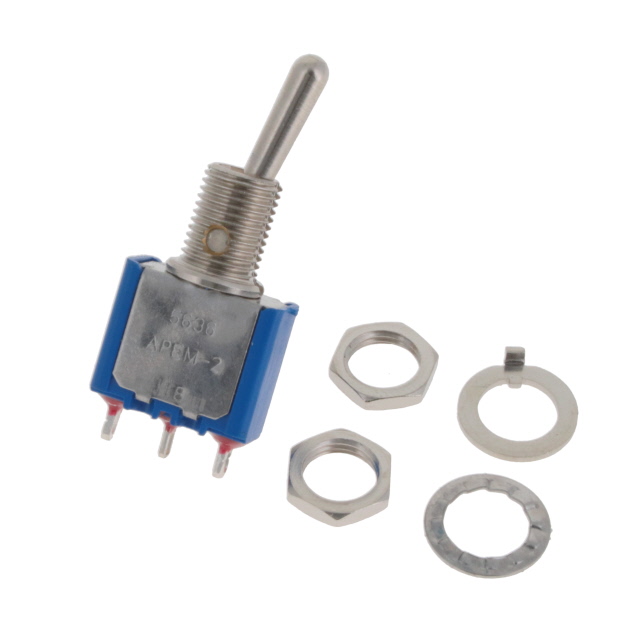

APEM Inc. 5636ABULCSA	Brass Nickel Plated	50000 Cycles	Solder Lug	4 A 6 A	Non-Illuminated	SPDT	1/4-40	Epoxy Sealed Terminals	30 V	On-On	125 V	6.5 mm	85 °C	-40 C	Standard Round	Panel Mount
APEM Inc. 5636AGKB2V	Brass Nickel Plated	50000 Cycles	Solder Lug	4 A 6 A	Non-Illuminated	SPDT	1/4-40	Matte Black Finish	30 V	On-On	125 V	6.5 mm	85 °C	-40 C	Locking Lever	Panel Mount	14.75 mm

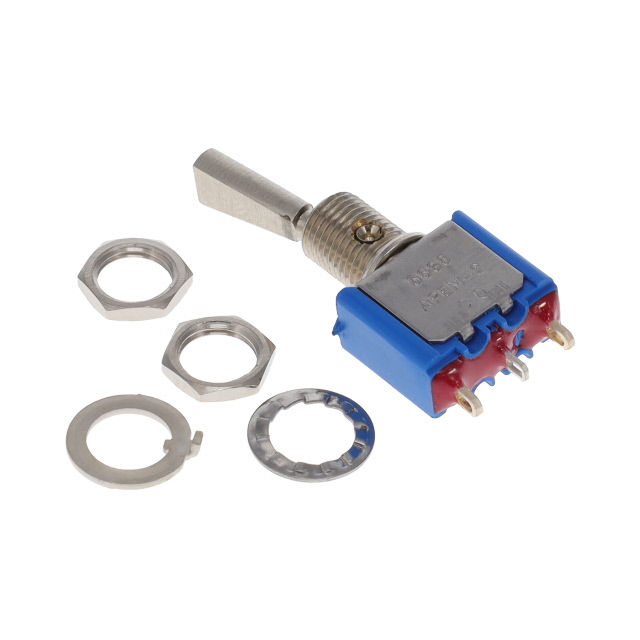

APEM Inc. 5636AB9	Brass Nickel Plated	50000 Cycles	Solder Lug	4 A 6 A	Non-Illuminated	SPDT		Epoxy Sealed Terminals	30 V	On-On	125 V	6.5 mm	85 °C	-40 C	Flatted	Panel Mount	11.4 mm
