ref Series
Manufacturer: KYOCERA AVX
Beta
⌘K

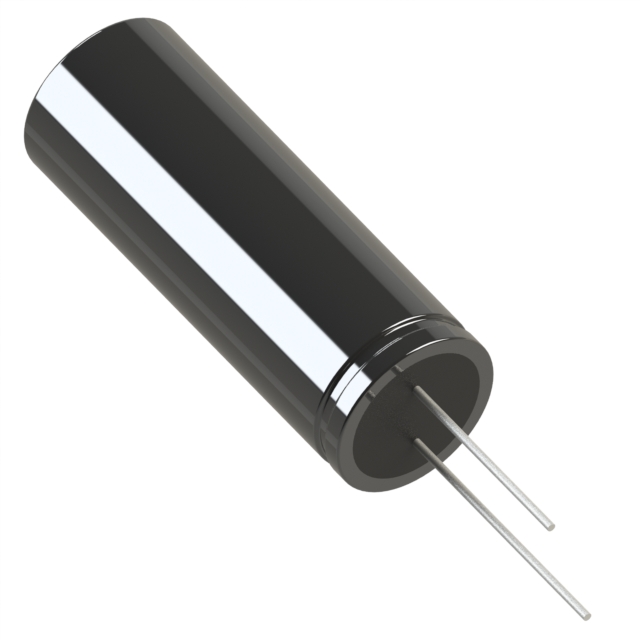

CAPACITOR: ELECTROLYTIC; THT; 1500UF; 35VDC; Ø12.5X35MM; ±20%; REF
| Part | Mounting Type | Ripple Current @ High Frequency | Lead Spacing | Lead Spacing | Polarization | Applications | Tolerance | Package / Case | Capacitance | Impedance | Voltage - Rated | Ripple Current @ Low Frequency | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Through Hole | 3.45 A | 0.197 " | 5 mm | Polar | General Purpose | 20 % | Can Radial | 1.5 mF | 14 mOhms | 35 V | 2.07 A | 37 mm | 1.457 in | 0.492 in | 12.5 mm | -40 C | 105 ░C | 6000 Hrs |
