202-0039 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K

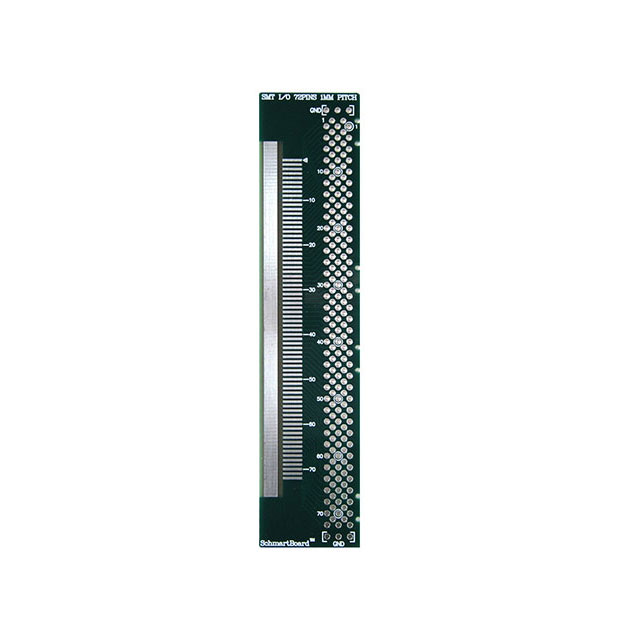

PCBS & BREADBOARDS 1.0MM PITCH SMT CONNECTOR BOARD
| Part | Proto Board Type | Plating | Hole Diameter [diameter] | Hole Diameter [diameter] | Pitch | Pitch | Pitch | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Circuit Pattern |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Breadboard General Purpose | Non-Plated Through Hole (NPTH) | 0.97 mm | 0.038 in | 0.05 in 0.1 " | 1.27 mm 2.54 mm | Grid | 22.7 mm | 3.99 " | 0.89 in | 101.4 mm | Custom |
