AWCU Series

Catalog

COMMON MODE CHOKES / FILTERS CHILISIN COMMON MODE CHOKE (CMC) AUTOMOTIVE CAN BUS SYSTEMS

Part	Mounting Type	Current Rating (Max) [Max]	Number of Lines	Filter Type	Height (Max) [z]	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Impedance @ Frequency	Ratings	Voltage Rating - DC	Grade	Inductance @ Frequency	Height (Max)	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)	Qualification

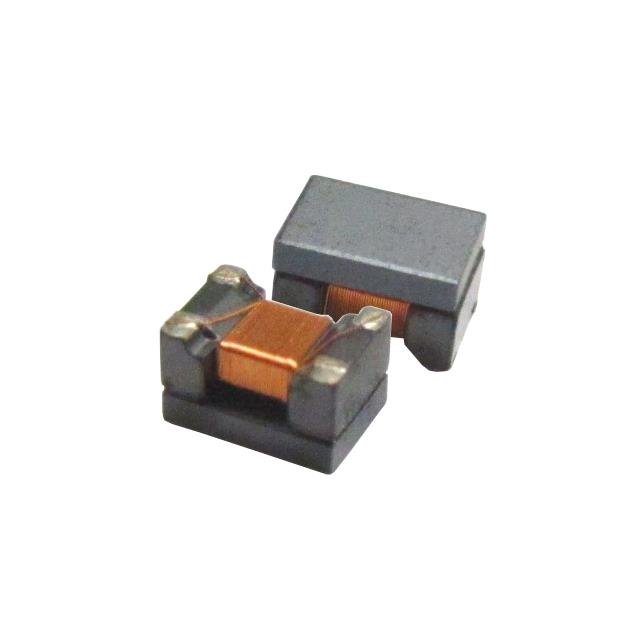

Pulse Electronics AWCU00201212121M02	Surface Mount	400 mA	2	Signal Line	1.4 mm	0.055 in	1.25 mm	0.081 in	2.05 mm	0.049 "	300 mOhm	150 °C	-50 °C	Horizontal 4 PC Pad	120 Ohms	AEC-Q200	50 VDC
Pulse Electronics AWCU00201212261M02	Surface Mount	300 mA	2	Signal Line	1.4 mm	0.055 in	1.25 mm	0.081 in	2.05 mm	0.049 "	400 mOhm	150 °C	-50 °C	Horizontal 4 PC Pad	260 Ohms	AEC-Q200	50 VDC
Pulse Electronics AWCU00453226113TT2	Surface Mount	250 mA	2	Signal Line			3.2 mm	0.177 in	4.5 mm	0.126 in		150 °C	-50 °C	Horizontal 4 PC Pad	600 Ohms		50 VDC	Automotive	11 çH 100 kHz	2.8 mm	0.11 in	600 mOhm	AEC-Q200
Pulse Electronics AWCU00332525220XG0	Surface Mount	250 mA	2	Signal Line			2.5 mm	0.13 "	3.3 mm	0.098 in	500 mOhm	150 °C	-50 °C	Horizontal 4 PC Pad	1.1 kOhms	AEC-Q200	80 V		22 µH	2.7 mm	0.106 in
Pulse Electronics AWCU00201212501M02	Surface Mount	170 mA	2	Signal Line	1.4 mm	0.055 in	1.25 mm	0.081 in	2.05 mm	0.049 "		150 °C	-50 °C	Horizontal 4 PC Pad	500 Ohms	AEC-Q200	50 VDC					550 mOhm
Pulse Electronics AWCU00201212670Y03	Surface Mount	500 mA	2	Signal Line	1.4 mm	0.055 in	1.25 mm	0.081 in	2.05 mm	0.049 "	300 mOhm	150 °C	-50 °C	Horizontal 4 PC Pad	67 Ohms	AEC-Q200	50 VDC
