9626 Series
Manufacturer: Belden Inc.
Beta
⌘K

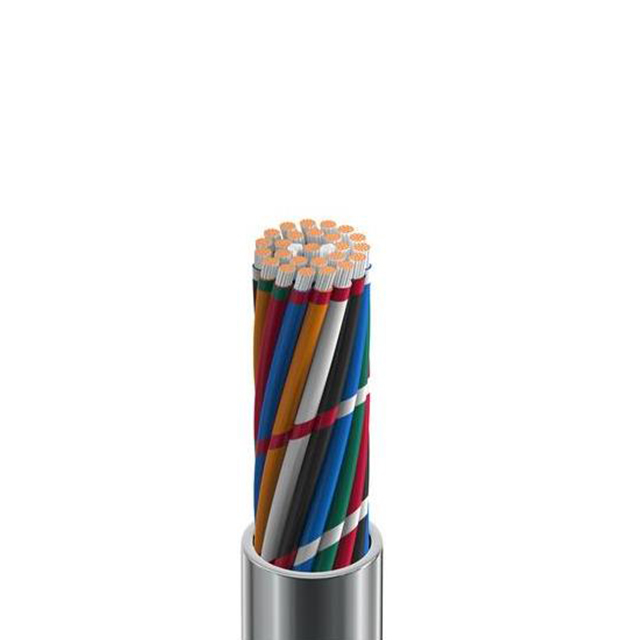

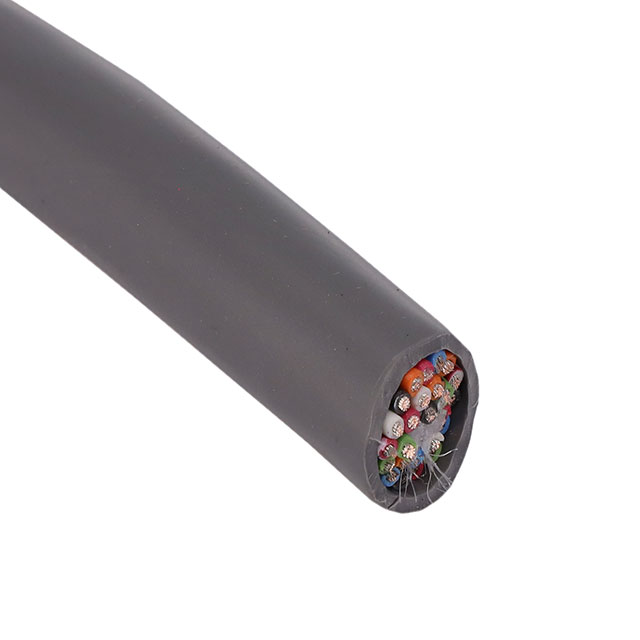

CABLE 25COND 18AWG CHROME
| Part | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Voltage | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Insulation | Jacket (Insulation) Material | Number of Conductors [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Multi-Conductor | 0.06 in | 1.524 mm | UL Style 2598 | 300 VDC | 18 AWG | -20 ░C | 60 °C | 304.8 m | 1000 ft | Copper Tinned | Chrome | 30 AWG | 19 | 15.54 mm | 0.612 " | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 25 | ||
 Belden Inc. | Multi-Conductor | 0.06 in | 1.524 mm | UL Style 2598 | 300 VDC | 18 AWG | -20 ░C | 60 °C | Copper Tinned | Chrome | 30 AWG | 19 | 15.54 mm | 0.612 " | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 25 | 100 ft | 30.5 m | ||
Belden Inc. | Multi-Conductor | 0.06 in | 1.524 mm | UL Style 2598 | 300 VDC | 18 AWG | -20 ░C | 60 °C | 152.4 m | 500 ft | Copper Tinned | Chrome | 30 AWG | 19 | 15.54 mm | 0.612 " | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 25 |
