3SE5162 Series

Manufacturer: Siemens

Catalog

SWITCH LIMIT 5PST 6A 125V

Part	Actuator Type	Current Rating (Amps)	Mounting Type	Electrical Life	Circuit	Ingress Protection	Termination Style	Switch Function	Mechanical Life	Voltage Rating - DC	Voltage Rating - AC	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel
Siemens 3SE51620UB011AM4	Round (Pin Plunger)	3 A 6 A	Chassis Mount	100000 Cycles	5PST-3NC/2NO	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	4079 gf	85 °C	-25 °C
Siemens 3SE51620CE01	Roller Top Rotary	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	1530 gf	85 °C	-25 °C
Siemens 3SE51620CA001CA0	Round (Pin Plunger)	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	3059 gf	85 °C	-25 °C

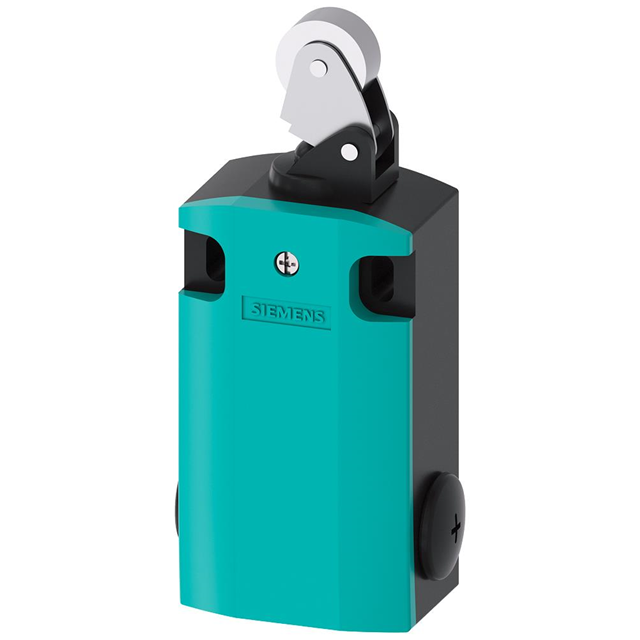

Siemens 3SE51620CE02	Roller Top Rotary	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	1530 gf	85 °C	-25 °C
Siemens 3SE51620BA001CA0	Round (Pin Plunger)	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	3059 gf	85 °C	-25 °C

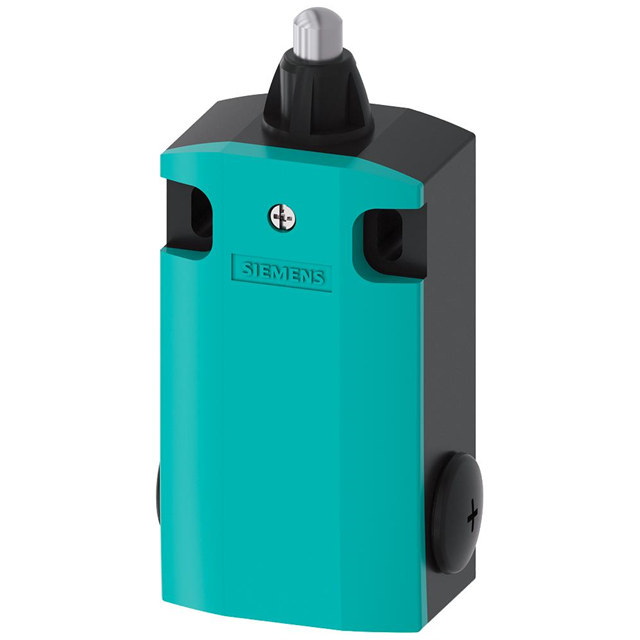

Siemens 3SE51620EC02	Round (Pin Plunger)	3 A 6 A	Chassis Mount	100000 Cycles	5PST-3NC/2NO	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	3059 gf	85 °C	-25 °C	0.118 "	3 mm

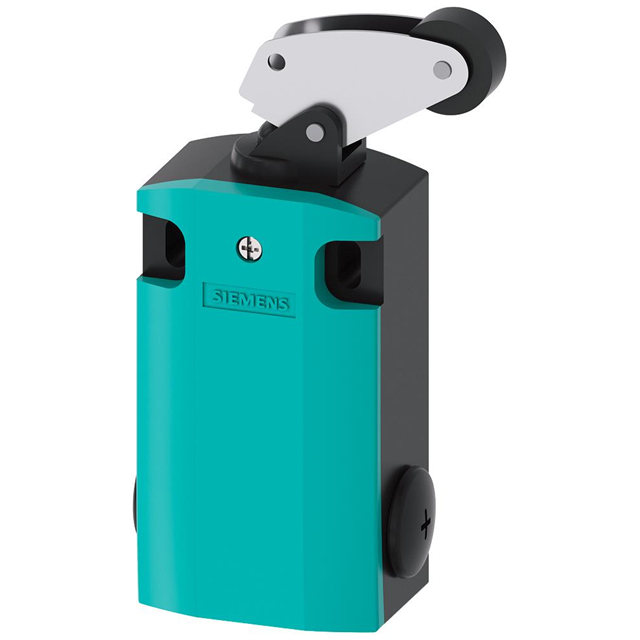

Siemens 3SE51620CF01	Roller Top Rotary	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	1020 gf	85 °C	-25 °C

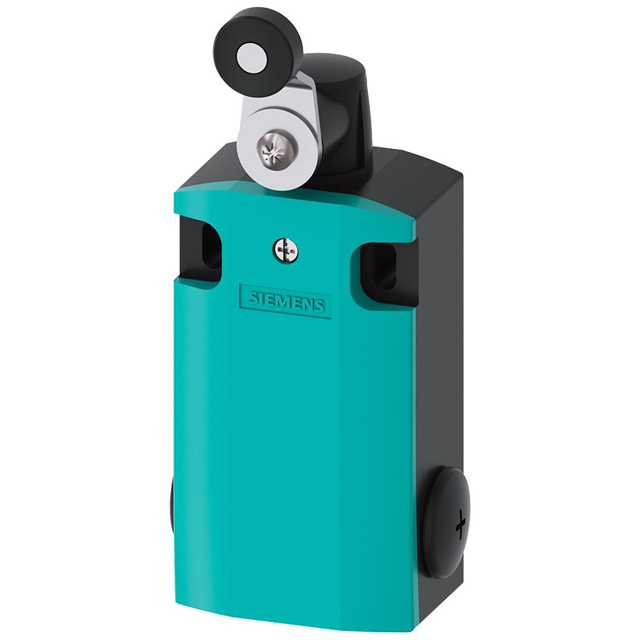

Siemens 3SE51620CH01	Roller Side Rotary	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V		85 °C	-25 °C
Siemens 3SE51620CD02	Roller Plunger	3 A 6 A	Chassis Mount	100000 Cycles	4PST-2NO/2NC	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	3059 gf	85 °C	-25 °C
Siemens 3SE51620DA00	Round (Pin Plunger)	3 A 6 A	Chassis Mount	100000 Cycles	6PST-4NC/2NO	IP66 IP67	Screw Terminal	Off-Mom On-Mom	5000000 Cycles	24 V	125 V	3059 gf	85 °C	-25 °C
