83652 Series
Manufacturer: Belden Inc.
Beta
⌘K

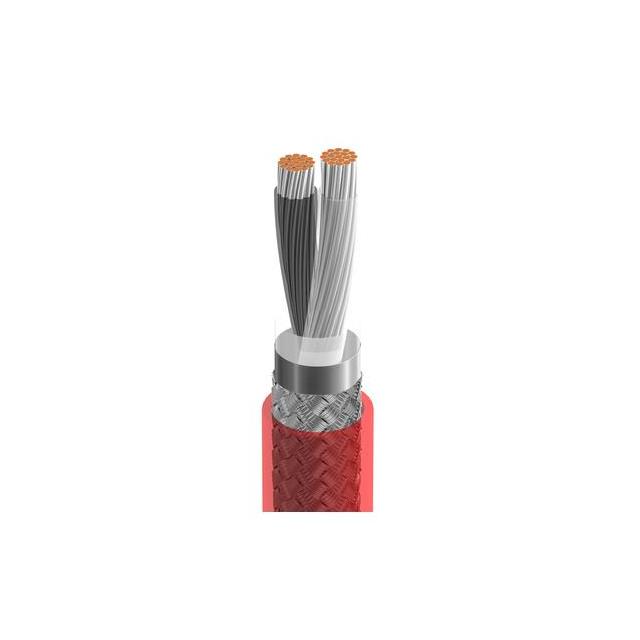

CABLE 2COND 18AWG RED SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Cable Type | Jacket Color | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Insulation | Voltage | Shield Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Material | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4.34 mm | 0.171 " | 0.014 in | 0.356 mm | Audio Control Instrumentation | Multi-Conductor | Red | UL Style CMP | -70 °C | 200 °C | 18 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Braid Foil | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | 152.4 m | 500 ft | Copper Tinned | 2 | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4.34 mm | 0.171 " | 0.014 in | 0.356 mm | Audio Control Instrumentation | Multi-Conductor | Red | UL Style CMP | -70 °C | 200 °C | 18 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Braid Foil | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | Copper Tinned | 2 | 100 ft | 30.5 m | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4.34 mm | 0.171 " | 0.014 in | 0.356 mm | Audio Control Instrumentation | Multi-Conductor | Red | UL Style CMP | -70 °C | 200 °C | 18 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Braid Foil | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | Copper Tinned | 2 | ||||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4.34 mm | 0.171 " | 0.014 in | 0.356 mm | Audio Control Instrumentation | Multi-Conductor | Red | UL Style CMP | -70 °C | 200 °C | 18 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Braid Foil | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | 304.8 m | 1000 ft | Copper Tinned | 2 | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4.34 mm | 0.171 " | 0.014 in | 0.356 mm | Audio Control Instrumentation | Multi-Conductor | Red | UL Style CMP | -70 °C | 200 °C | 18 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Braid Foil | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | Copper Tinned | 2 | 2000 ft | 609.6 m |
