ANT-DK Series
Manufacturer: Adam Tech
Beta
⌘K
RF ANT WHIP/TILT U.FL CONN MT
| Part | Termination | Termination | Height (Max) [z] | Height (Max) [Max] [z] | Mounting Type | RF Family/Standard | Antenna Type | Applications | Frequency (Center/Band) | Gain | Features | VSWR | Number of Bands | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Height (Max) [z] | Frequency Range [Min] | Frequency Range [Max] | Return Loss | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) | 190 mm | 7.48 in | Connector Mount | WiFi | Tilt Whip | Wi-Fi | |||||||||||||

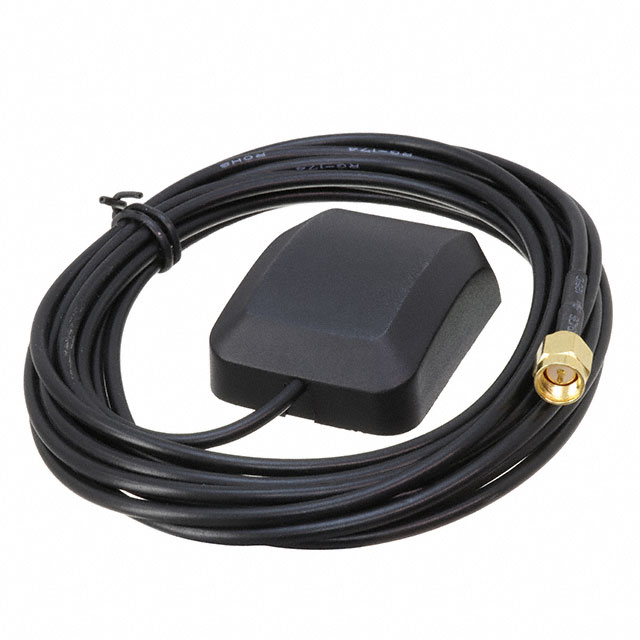

 Adam Tech | SMA | 17 mm | Magnetic | Navigation | Molded | GPS | 1.575 GHz | 3 dBi | Cable - 3m | 1.5 | 1 | 2 GHz | 1 GHz | UHF | 0.669 in | 1.57 GHz | 1.58 GHz | ||||

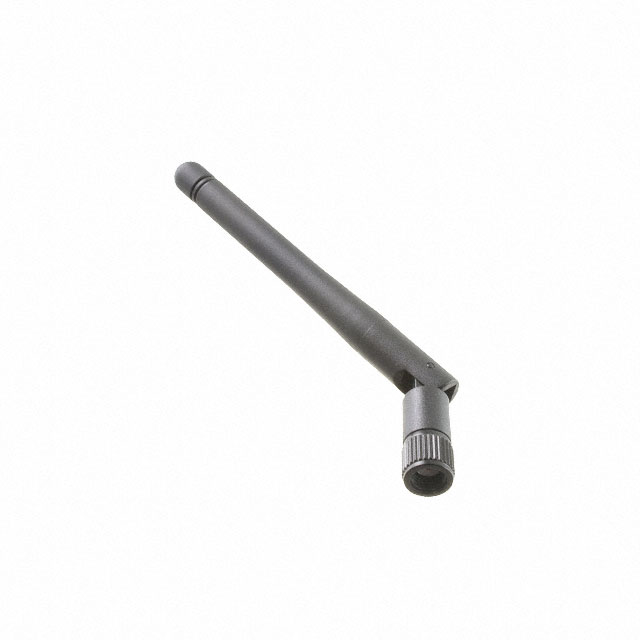

 Adam Tech | RP-SMA | 108 mm | Connector Mount | WiFi | Tilt Whip | WLAN | 2.45 GHz 5.35 GHz | 2 dBi | 1.92 | 2 | SHF UHF | 4.252 in | 2.4 GHz 4.9 GHz | 2.5 GHz 5.8 GHz | -10 dB | 1 W | |||||

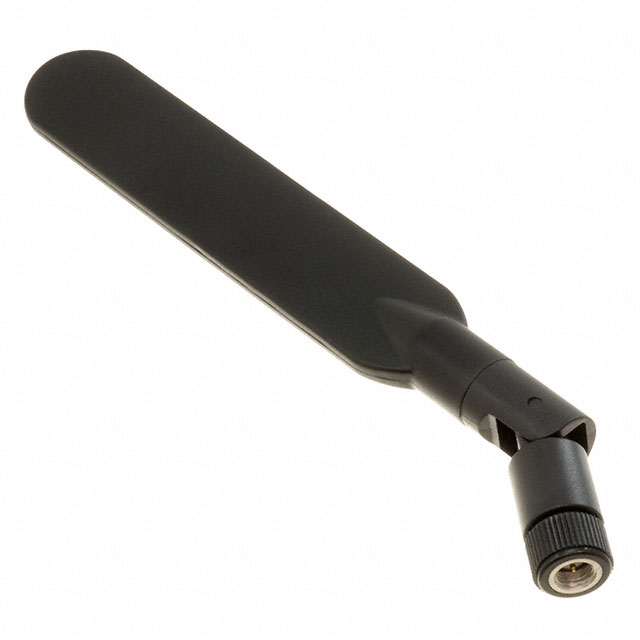

 Adam Tech | SMA | 6.339 in 161 mm | Connector Mount | Cellular | Tilt Whip | LTE | 2.2 GHz 832 MHz | 2 dBi | 1.92 | 2 | UHF (2GHz ~ 3GHz) UHF (300MHz ~ 1GHz) | 1.71 GHz 704 MHz | 2.69 GHz 960 MHz | -10 dB | 1 W | ||||||

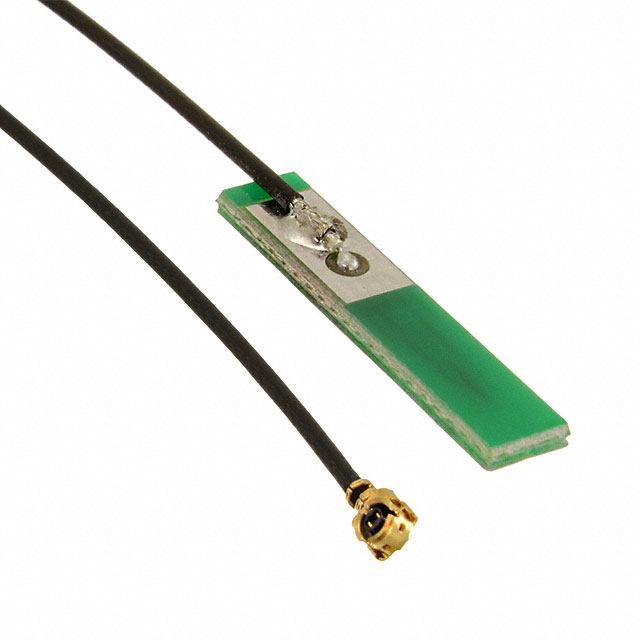

 Adam Tech | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) | 1.47 mm | Surface Mount | WiFi | PCB Trace | Wi-Fi | 2 dBi | Cable - 200mm | 2 | 1 | 0.058 in | 2.4 GHz | 2.5 GHz |
