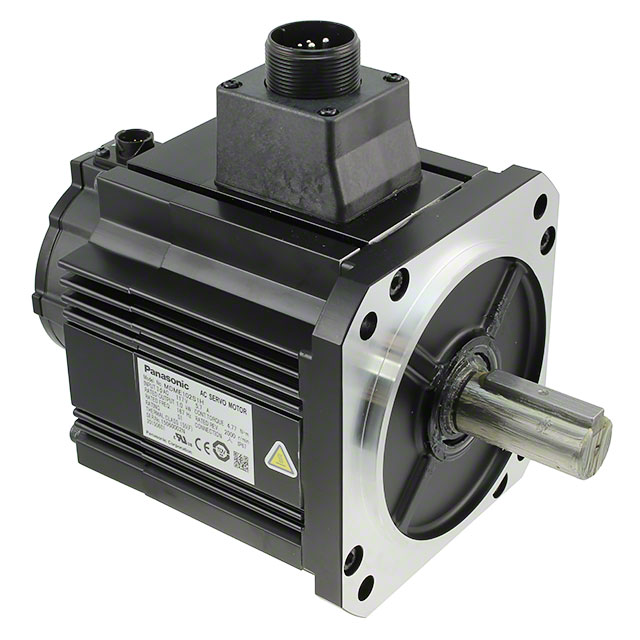

MDME102 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SERVOMOTOR 2000 RPM 200V
| Part | Type | Termination Style | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | RPM | Mounting Hole Spacing | Mounting Hole Spacing | Power - Rated | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Function | Approval Agency | Weight | Weight | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Features | Encoder Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | AC Motor | Connector | 200 VAC | 0.866 in | 22 mm | 2000 RPM | 5.709 in | 145 mm | 1000 W | 55 mm | 2.165 in | 14300 mNm | 2025 oz-in | Servomotor | CE CSA cULus TUV UL | 11 lbs | 5 kg | 4770 mNm | 675.5 oz-in | Key Oil Seal | Incremental | 5.118 in | 130 mm | 5.118 " | 130 mm | 40 °C | 0 °C |
 Panasonic Industrial Automation Sales | AC Motor | Connector | 200 VAC | 0.866 in | 22 mm | 2000 RPM | 5.709 in | 145 mm | 1000 W | 55 mm | 2.165 in | 14300 mNm | 2025 oz-in | Servomotor | CE CSA cULus TUV UL | 11 lbs | 5 kg | 4770 mNm | 675.5 oz-in | Key Oil Seal | Absolute | 5.118 in | 130 mm | 5.118 " | 130 mm | 40 °C | 0 °C |
 Panasonic Industrial Automation Sales | AC Motor | Connector | 200 VAC | 0.866 in | 22 mm | 2000 RPM | 5.709 in | 145 mm | 1000 W | 55 mm | 2.165 in | 14300 mNm | 2025 oz-in | Servomotor | CE CSA cULus TUV UL | 15 lbs | 6.8 kg | 4770 mNm | 675.5 oz-in | Brake Key Oil Seal | Incremental | 5.118 in | 130 mm | 5.118 " | 130 mm | 40 °C | 0 °C |
 Panasonic Industrial Automation Sales | AC Motor | Connector | 200 VAC | 0.866 in | 22 mm | 2000 RPM | 5.709 in | 145 mm | 1000 W | 55 mm | 2.165 in | 14300 mNm | 2025 oz-in | Servomotor | CE CSA cULus TUV UL | 15 lbs | 6.8 kg | 4770 mNm | 675.5 oz-in | Brake Key Oil Seal | Absolute | 5.118 in | 130 mm | 5.118 " | 130 mm | 40 °C | 0 °C |
 Panasonic Industrial Automation Sales | AC Motor | Connector | 200 VAC | 0.866 in | 22 mm | 2000 RPM | 5.709 in | 145 mm | 1000 W | 55 mm | 2.165 in | 14300 mNm | 2025 oz-in | Servomotor | CE CSA cULus TUV UL | 11 lbs | 5 kg | 4770 mNm | 675.5 oz-in | Key Oil Seal | Incremental | 5.118 in | 130 mm | 5.118 " | 130 mm | 40 °C | 0 °C |
