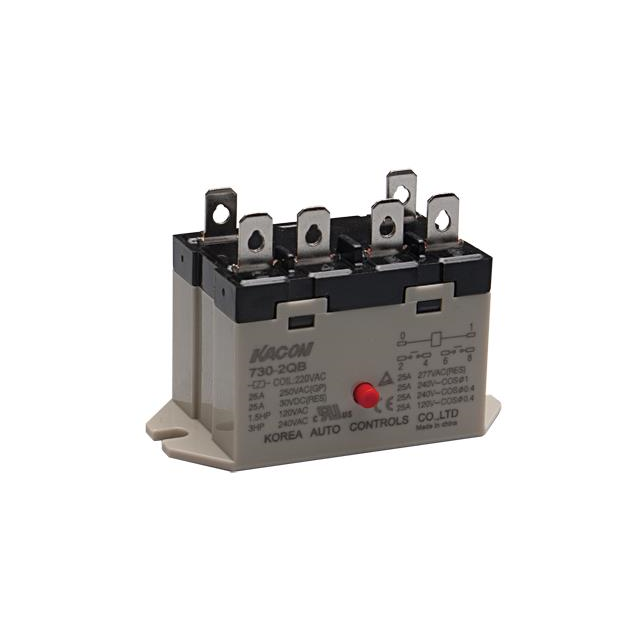

730-2QB Series
Manufacturer: Kacon
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE DPST 25A 24V
| Part | Quick Connect Size (0.250") | Termination Style | Mounting Type | Release Time | Contact Material | Form A Count | Contact Form | Operating Temperature (Max) | Operating Temperature (Min) | Contact Rating (Current) | Relay Type | Coil Voltage | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Operate Time | Coil Current | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | 0.25 in | Quick Connect | Chassis Mount | 30 ms | Silver Alloy | 2 | DPST-NO | 60 °C | -10 °C | 25 A | General Purpose | 24 VDC | 30 VDC | 277 VAC | 30 ms | 79 mA | Test Button |
Kacon | 0.25 in | Quick Connect | Chassis Mount | 30 ms | Silver Alloy | 2 | DPST-NO | 60 °C | -10 °C | 25 A | General Purpose | 110 V | 30 VDC | 277 VAC | 30 ms | 24.5 mA | Test Button |
