8401-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .025-.037" .250"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Contact Material	Contact Finish	Socket Depth [z]	Socket Depth [z]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Square Pin Size	Accepts Square Pin Size	Socket Depth	Socket Depth

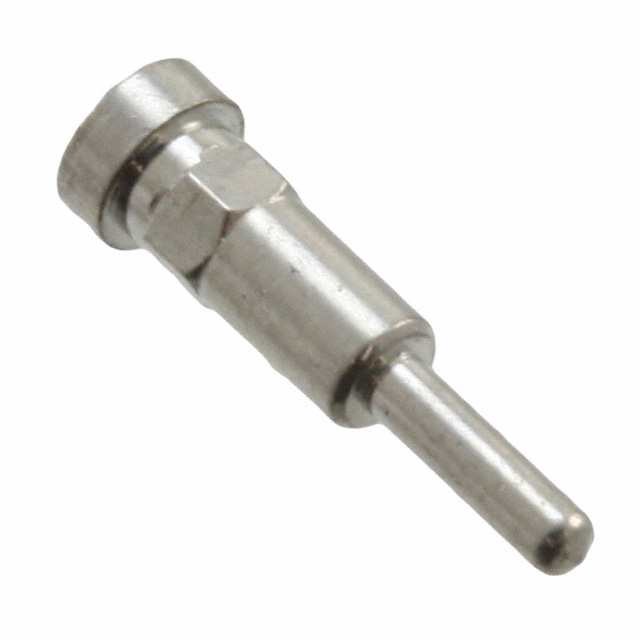

Mill-Max Manufacturing Corp. 8401-0-15-01-47-01-04-0	-55 C	125 °C	0.031 in	0.79 mm	Hex Press-Fit	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	Beryllium Copper	Tin-Lead	3.66 mm	0.144 in	0.285 in	7.24 mm	0.063 in	1.6 mm	0.079 in	2.01 mm	0.051 in	1.3 mm	200 Áin	5.08 Ám	0.025 in	0.64 mm

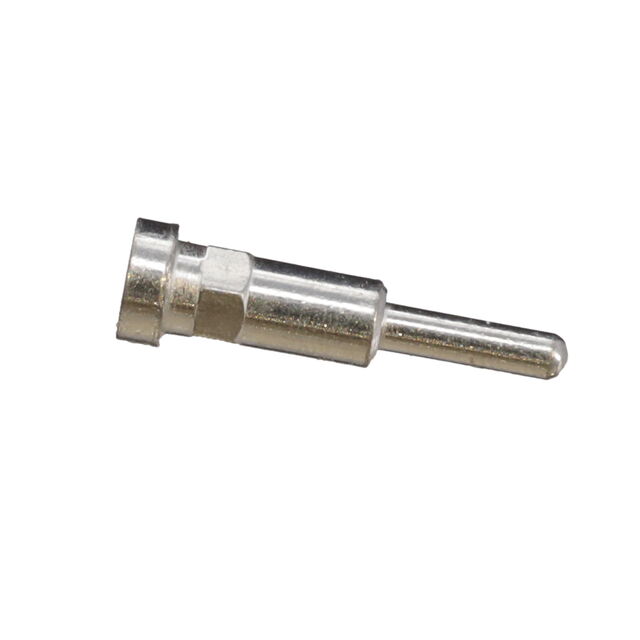

Mill-Max Manufacturing Corp. 8401-0-15-80-47-80-04-0	-55 C	125 °C	0.031 in	0.79 mm	Hex Press-Fit	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	Beryllium Copper	Tin			0.285 in	7.24 mm			0.079 in	2.01 mm	0.051 in	1.3 mm	200 Áin	5.08 Ám	0.025 in	0.64 mm	0.089 in	2.26 mm
Mill-Max Manufacturing Corp. 8401-0-15-01-47-27-04-0	-55 C	125 °C	0.031 in	0.79 mm	Hex Press-Fit	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	Beryllium Copper	Gold	3.66 mm	0.144 in	0.285 in	7.24 mm	0.063 in	1.6 mm	0.079 in	2.01 mm	0.051 in	1.3 mm	30 Áin	0.76 Ám	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 8401-0-15-15-47-14-04-0	-55 C	125 °C	0.031 in	0.79 mm	Hex Press-Fit	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	Beryllium Copper	Gold			0.285 in	7.24 mm			0.079 in	2.01 mm	0.051 in	1.3 mm	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.089 in	2.26 mm
Mill-Max Manufacturing Corp. 8401-0-15-80-47-14-04-0	-55 C	125 °C	0.031 in	0.79 mm	Hex Press-Fit	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	Beryllium Copper	Gold			0.285 in	7.24 mm			0.079 in	2.01 mm	0.051 in	1.3 mm	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.089 in	2.26 mm
