W2P15X7 Series

Catalog

ANT ASSY, WLAN2 04 100 D0230

Part	Gain	Number of Bands	Features	Features	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Termination	Mounting Type	Antenna Type	Return Loss	Height (Max) [z]	Height (Max) [z]	RF Family/Standard	Frequency Group	Applications

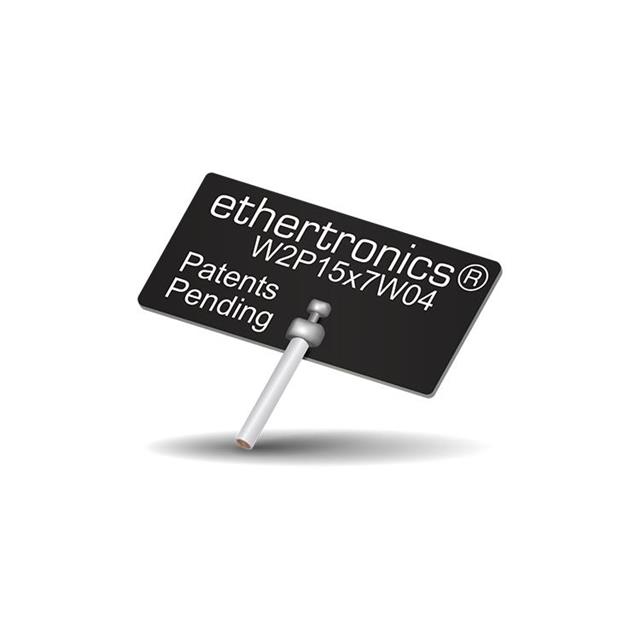

KYOCERA AVX W2P15X7W04-U100D3B0A	3.9 dBi 4.3 dBi	2	Cable	100 mm	5.5 GHz 6525 MHz	5.85 GHz 7.125 GHz	5.15 GHz 5.925 GHz	U.FL	Adhesive	PCB Trace	-9 dB -7.3 dB	0.4 mm	0.016 in	WiFi	SHF (f > 4GHz)	Wi-Fi

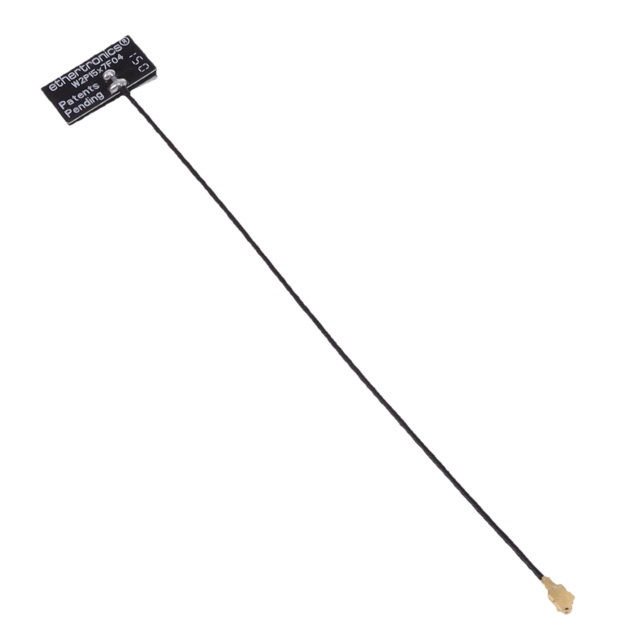

KYOCERA AVX W2P15X7F04-U100D3B0T	3.9 dBi 4.3 dBi	2	Cable	100 mm	5.5 GHz 6525 MHz	5.85 GHz 7.125 GHz	5.15 GHz 5.925 GHz	U.FL	Adhesive	PCB Trace	-9 dB -7.3 dB	0.4 mm	0.016 in	WiFi	SHF (f > 4GHz)	Wi-Fi
