0871-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

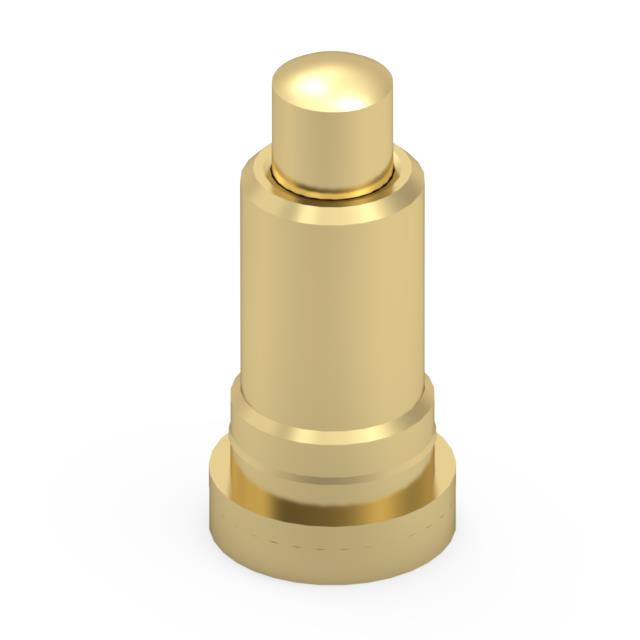

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Current Rating (Amps) | Contact Finish | Mating Cycles | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 10.16 mm | 0.4 in | 20 µin | 0.51 µm | Surface Mount | 4.75 mm | Circular | 0.187 " | 100 gf | 25 gf | 0.361 in | 9.18 mm | 2.34 mm | 0.092 in | 8.13 mm | 0.32 in | 9.6 A | Gold | 1000000 | Brass Alloy |
