9405 Series
Manufacturer: Belden Inc.
Beta
⌘K

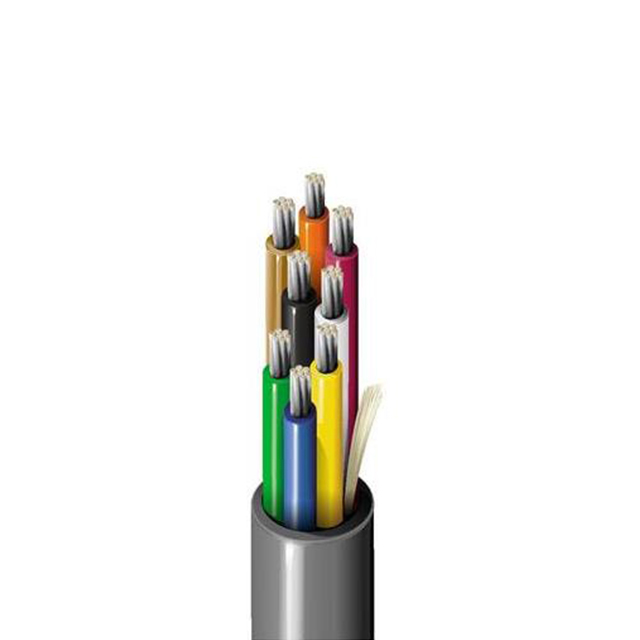

CABLE 8COND 16AWG/18AWG
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Cable Type | Number of Conductors [custom] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Ratings | Length | Length | Jacket (Insulation) Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 19 | 28 AWG 30 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 0.345 in | 8.76 mm | 80 °C | -20 ░C | 16 AWG 18 AWG | Multi-Conductor | 8 | Copper Tinned | 0.813 mm | 0.032 in | 300 VDC | UL Style 2464 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | UV Resistant |
