SM20B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 20POS 1MM
| Part | Features | Voltage Rating | Number of Rows | Insulation Material | Contact Shape | Shrouding | Contact Material | Insulation Height | Insulation Height | Termination | Contact Type | Style | Number of Positions Loaded | Number of Positions | Contact Finish - Post | Fastening Type | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating | Number of Rows [custom] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

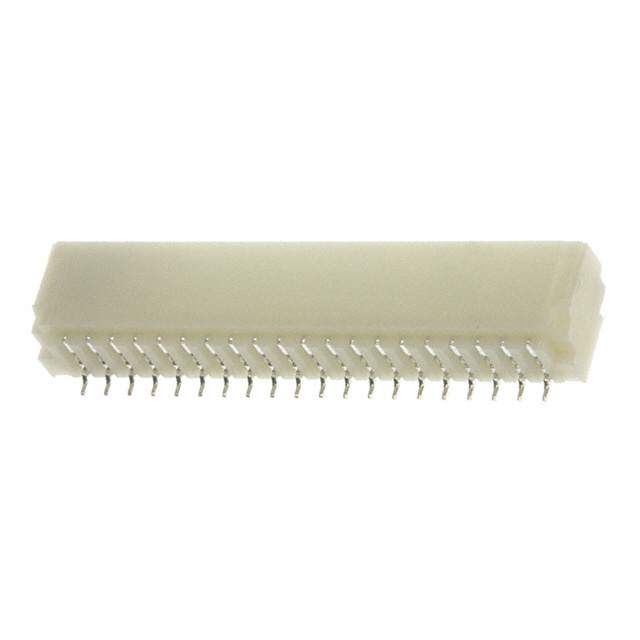

 JST Sales America Inc. | Solder Retention | 50 V | 1 | Nylon Polyamide (PA) | Square | Shrouded - 4 Wall | Copper Alloy | 0.114 in | 2.9 mm | Solder | Male Pin | Board to Cable/Wire | All | 20 | Tin | Push-Pull | 1 mm | 0.039 in | Right Angle Surface Mount | Natural | 85 °C | -25 °C | Header | UL94 V-0 | ||

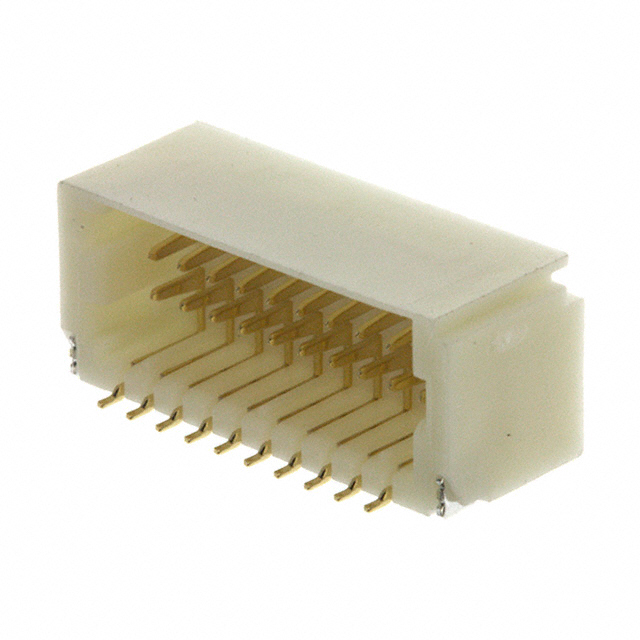

 JST Sales America Inc. | Pick and Place Solder Retention | 50 V | Glass Filled Nylon Polyamide (PA) | Square | Shrouded - 4 Wall | Phosphor Bronze | 0.217 in | 5.51 mm | Solder | Male Pin | Board to Cable/Wire | All | 20 | Push-Pull | 1 mm | 0.039 in | Right Angle Surface Mount | Natural | 85 °C | -25 °C | Header | UL94 V-0 | 2 | Gold |
