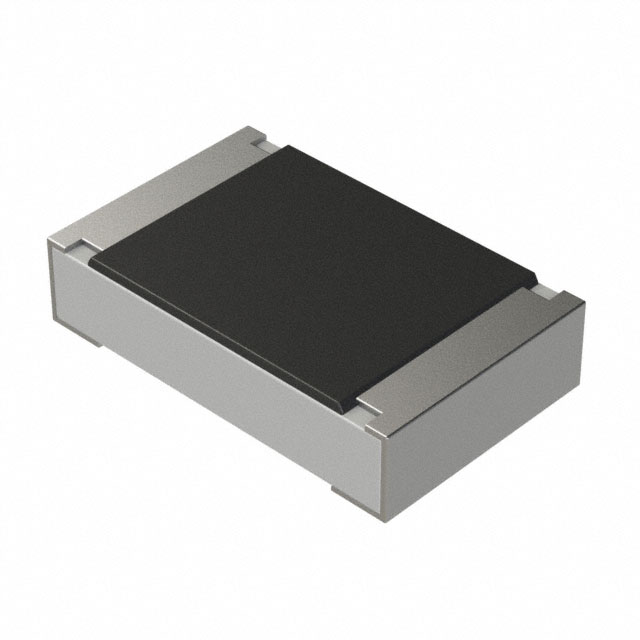

KDV Series

Manufacturer: Ohmite

Catalog

CURRENT SENSE RESISTORS - SMD 0.82 OHM 1206 0.5% 0.5W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Features	Composition	Power (Watts)	Power (Watts)	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Tolerance	Number of Terminations [custom]	Size / Dimension [y]	Package / Case
Ohmite KDV12DR820ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.5 W	0.5 W	1206 (3216 Metric)	3.1 mm	0.063 "	0.133 in	1.6 mm	820 mOhms	0.026 in	0.65 mm	1206	0.5 %	2
Ohmite KDV06FR360ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.2 W	0.2 W	0603	1.6 mm	0.031 in	0.063 "		360 mOhms	0.022 in	0.55 mm		1 %	2	0.8 mm	1608 Metric
Ohmite KDV06FR180ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.2 W	0.2 W	0603	1.6 mm	0.031 in	0.063 "		0.18 Ohms	0.022 in	0.55 mm		1 %	2	0.8 mm	1608 Metric
Ohmite KDV08FR300ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.25 W	0.25 W	0805	2 mm	0.049 "	0.079 in	1.25 mm	0.3 Ohms	0.026 in	0.65 mm	0805	1 %	2
Ohmite KDV08DR150ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.25 W	0.25 W	0805	2 mm	0.049 "	0.079 in	1.25 mm	0.15 Ohms	0.026 in	0.65 mm	0805	0.5 %	2
Ohmite KDV06FR050ET	155 C	-55 C	100 ppm/°C	Current Sense	Metal Film	0.2 W	0.2 W	0603	1.6 mm	0.031 in	0.063 "		0.05 Ohms	0.022 in	0.55 mm		1 %	2	0.8 mm	1608 Metric
Ohmite KDV08FR120ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.25 W	0.25 W	0805	2 mm	0.049 "	0.079 in	1.25 mm	0.12 Ohms	0.026 in	0.65 mm	0805	1 %	2
Ohmite KDV12DR360ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.5 W	0.5 W	1206 (3216 Metric)	3.1 mm	0.063 "	0.133 in	1.6 mm	360 mOhms	0.026 in	0.65 mm	1206	0.5 %	2
Ohmite KDV06DR390ET	155 C	-55 C	50 ppm/░C	Current Sense	Metal Film	0.2 W	0.2 W	0603	1.6 mm	0.031 in	0.063 "		390 mOhms	0.022 in	0.55 mm		0.5 %	2	0.8 mm	1608 Metric
